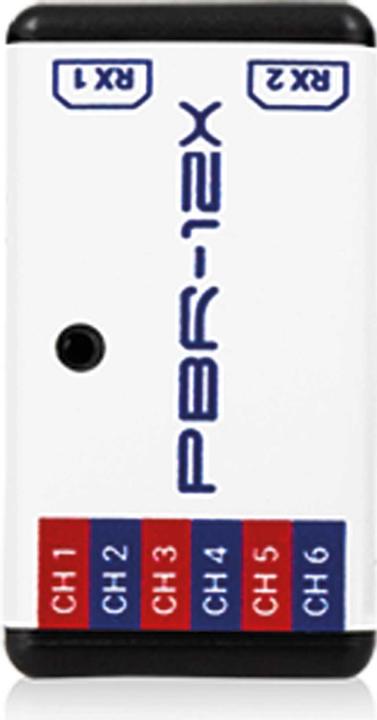

Powerbox Systems pbr-12x 12-channel servo distributor with electronic switch and hv supply

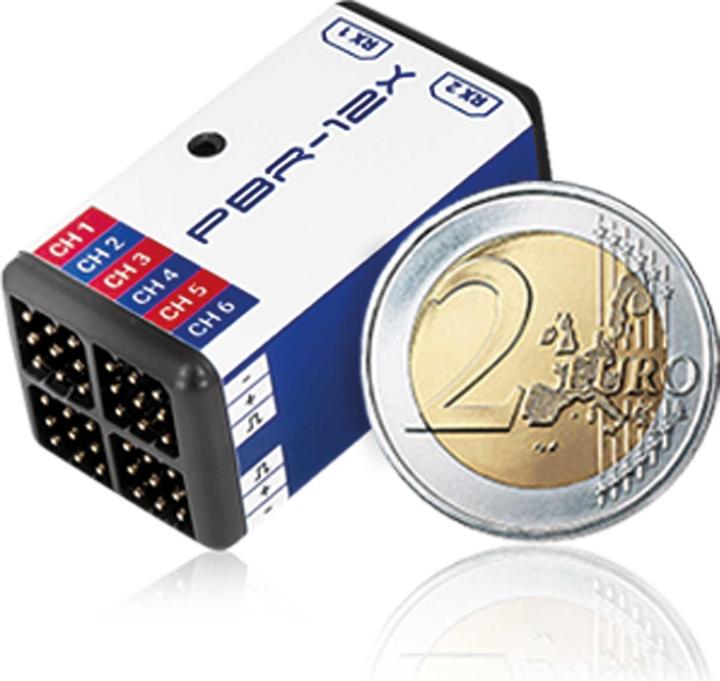

12-channel expander - Ultra-compact servo distributor with electronic switch and high-current power supply. The PBR-12X is ideal for use in any model where space is limited, but a large number of channels is required. The square arrangement of the servo sockets allows the PBR-12X to fit even in very narrow fuselages, such as those of F5J and F3B gliders.

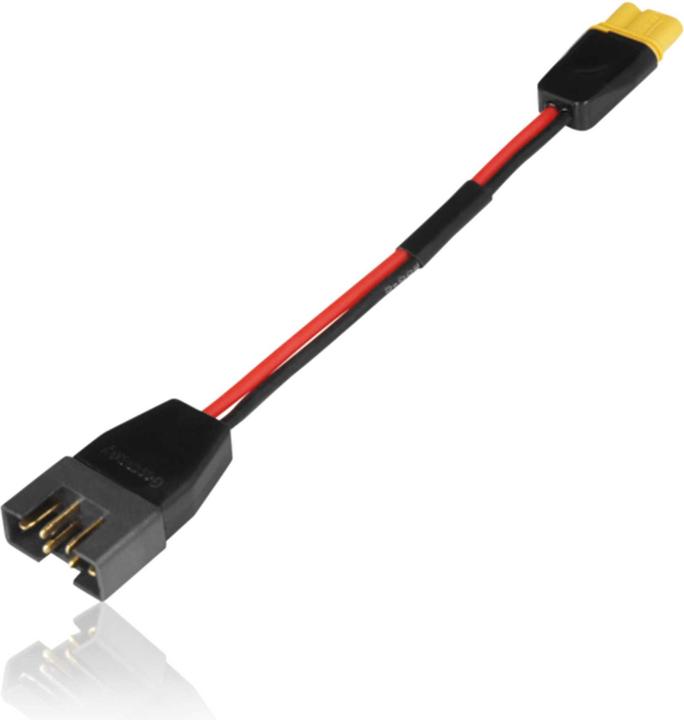

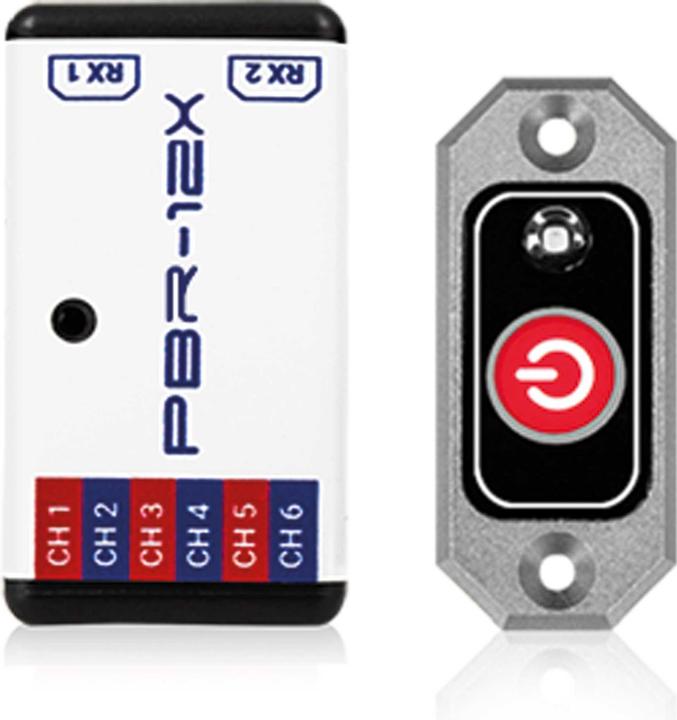

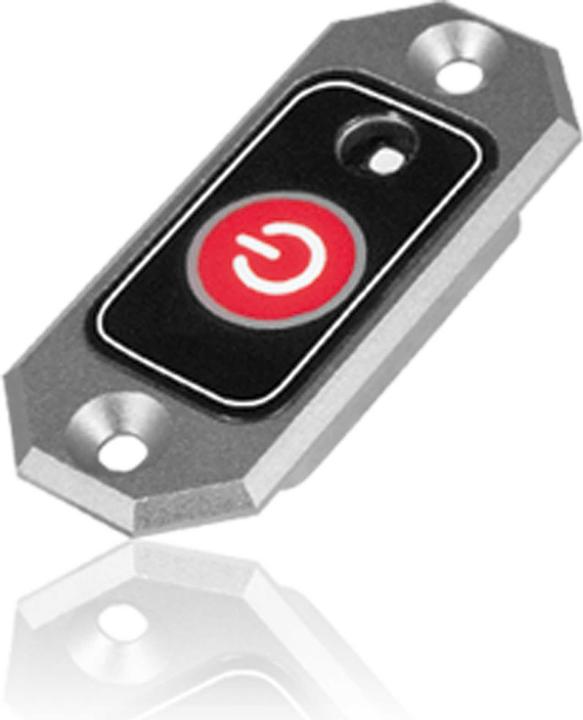

The integral electronic switch is operated using our MicroSwitch. If there is no space for this, the PBR-12X can be activated simply by plugging in or disconnecting the battery, as it stores the last switched state. The unit features an integral high-current input with a compact MR30 connector to reliably handle the current drain of twelve servos. An MR30 to MPX adapter is included in the set.

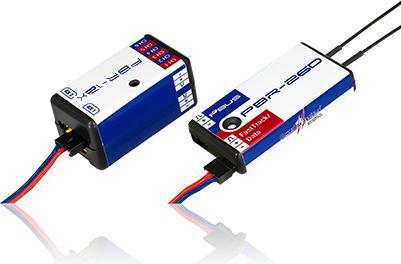

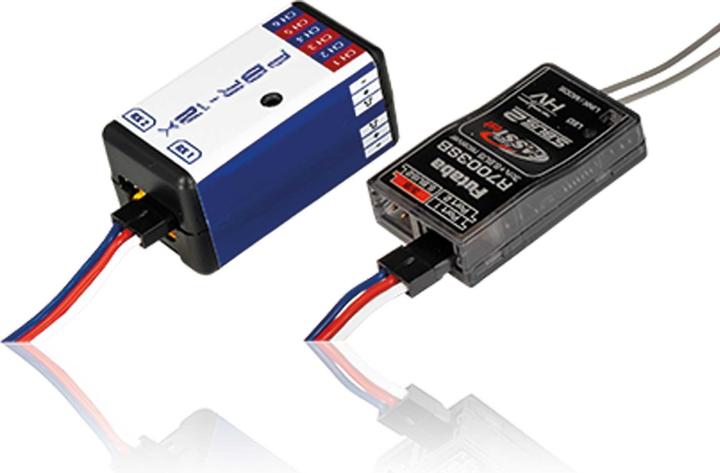

Any receiver with a bus output can be used as the receiving component. The unit automatically detects the bus system to which it is connected, meaning no setup work is required apart from setting the fail-safe positions. Two receivers can be connected to form the basis for a redundant receiving system. If the PBR-12X detects lost data packets from the first receiver, they are replaced with data from the second receiver; there is no loss of data.

The advantage of separating the receiving section from the servo output is that the receiving component can be installed in the optimum location in the model. For example, if your model has a high carbon fiber content in the area of the wing-fuselage junction, you can install the receiver in the fin.

The PBR-12X supplies telemetry data to all the listed radio control systems. In addition to battery voltage, the telemetry output includes current and consumed capacity. Reception data, such as lost frames or holds, are also delivered to most systems.
