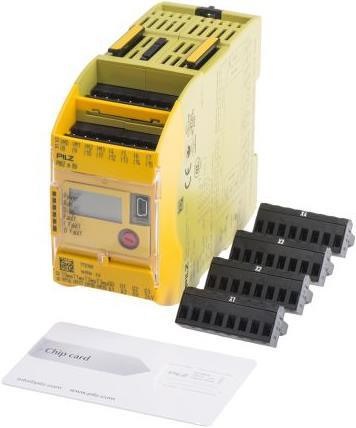

Pilz PNOZ m B0 Safety Controller w/ 32kb Card

Area: PNOZmulti 2
Series: PNOZ m BO
Number of Inputs/Outputs: 28
Number of Safety Inputs: 20
Number of Safety Outputs: 4
Safety Category: 4
Expansion Available: Yes
Supply Voltage: 24 V dc
Connection Type: Screw terminal
Length: 101.4 mm

CE, cULus approval, TÜV, BG, CCC. Screw connections and 32-kB memory card. PNOZmulti 2 safety control unit, base unit. The PNOZ m B0 base unit is an energy-efficient safety control unit that consumes up to 80% less energy than comparable products. It features a backlit display that allows for quick commissioning and diagnostics.

Features and Benefits:

• Meets PLe of EN ISO 13849-1 and SIL CL 3 of IEC 62061; the maximum achievable value depends on the application.
• Configurable with PNOZmulti Configurator via memory card or USB interface.
• Replaceable program memory.
• 20 safe inputs, of which up to 8 can be configured as auxiliary outputs.
• 4 safe semiconductor outputs, up to PLe, SIL CL 3 depending on the application.
• 4 test pulse outputs, of which up to 4 can be configured as standard outputs.
• Backlit display for error messages. Status of supply voltage, inputs and outputs, status and device information, custom texts can be displayed.
• Rotary knob for menu control.

Application Area:
The PNOZ m B0 connects emergency stop and two-hand buttons, light beams, scanners, release switches, safety door switches, mode selection switches, damping, safety mats, and sensors.
