Product details
Supply voltage = 24 Vdc
Housing material = plastic
Series = PSENmag
Switching distance = 15 mm
Protection class = IP67
Actuator included = Yes
Width = 40mm

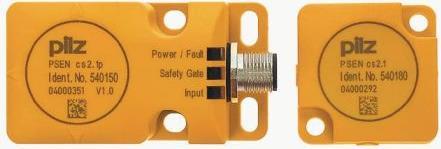

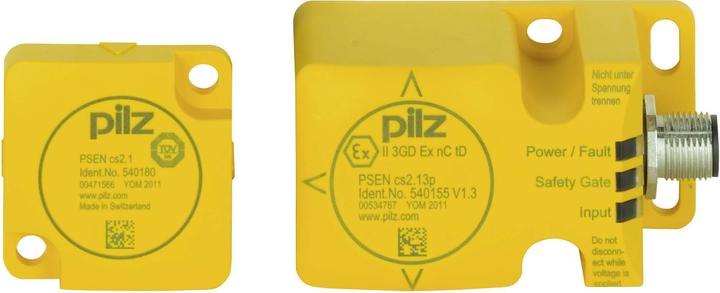

Standard EN60947-5-3 is only fulfilled if the complete system consisting of safety switch (PSENcode), actuator (PSENcode) and safety monitoring module (PNOZ X or PNOZmulti) is used. EN954-1 (Cat. 4), EN60204-1, EN60947-5-3. II 3GD EEx nC IIC T6; TÜV. EX8 04 11 20132 014. CE, cULus approval, ATEX, TÜV, FCC, IC, ECOLAB. Actuator. When the safety barrier is closed, the switch provides 2 NC semiconductor outputs. Large PSENcode non-contact safety switch, hazardous area. The PSEN cs1.1p safety switch (order no. ; 918-6689 918-6689 ) is coded and switches with an actuator from the PSEN cs1.1 series. The actuator can be used and reset as often as required. The safety switch PSEN cs2.13p (order no. ; 619-2795 619-2795 ) is fully coded and switches with an actuating element from the series PSEN cs2.1. These actuating elements must be taught-in. It can be taught up to a maximum of 8 times, but with only 1 actuating element at a time. Features and benefits. Serial connection, more than 10 safety switches in series according to EN954-1 (Cat. 4) The switch responds to a single actuating element, but can be taught up to 8 times to a new actuating element 5 actuating directions M12 connection, 8-pole For use in EX areas category 3, zones 2 and 22 according to EN50021 Protection class IP67.
