Phoenix Contact STTBS 4-MT
Product details

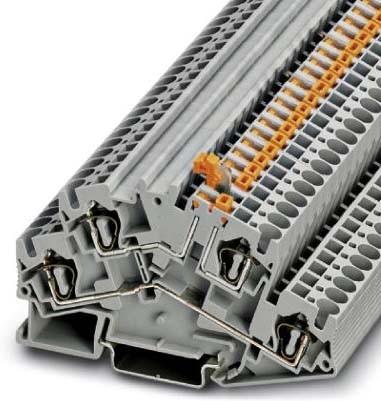

Description STTBS 4-MT - Knife disconnect terminal STTBS 4-MT Industrial package with 50 pieces knife disconnect terminal, cross section: 0.08 mm² - 6 mm², AWG: 28 - 10, connection type: tension spring connection, width: 6.2 mm, color: gray, mounting type: NS 35/7.5, NS 35/15 Technical data: AWG max.: 12 AWG min.: 28 Stripping length (max.): 10 mm Connection (components): Tension clamp Color: Gray Prod. part no.: 3035470 Industrial grade: Yes Content: 50 pcs. Rated voltage: 500 V Rated current: 20 A Product dimension, width: 6.2 mm Type (manufacturer type): STTBS 4-MT max. cross section flexible: 4 mm² max. cross section rigid: 6 mm² min. cross section flexible: 0.08 mm² min. cross section rigid: 0.08 mm².
Item number | 14929547 |
Manufacturer | Phoenix Contact |
Category | Cables + Plugs |
Manufacturer no. | 3035470 |
Release date | 28.2.2021 |
Colour | Grey |
Max. temperature | 105 °C |
mounting type | DIN top-hat rail |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 50 pcs. |
Length | 5.50 cm |
Width | 0.62 cm |
Height | 9.24 cm |
