Product details

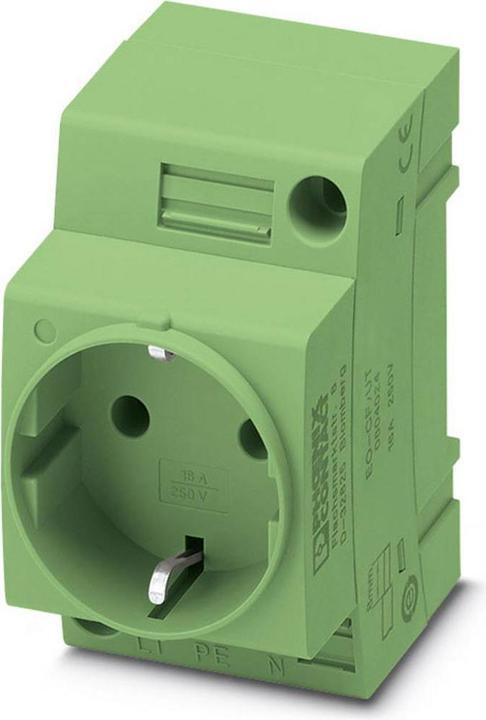

The EO-CF/UT/GN socket for DIN rail by Phoenix Contact is a reliable passive component designed for mounting on mounting rails or for direct installation. This socket features a screw connection and offers a rated voltage of 250 V AC as well as a rated current of 16 A. It is suitable for use in a temperature range of -20 °C to 60 °C and meets the requirements of the VDE 0620-1 standard. The green color of the socket ensures easy identification in the control cabinet. Weighing 73.53 g and with compact dimensions, it is ideal for use in various electrical installations. The socket is a practical solution for service interfaces and provides a secure connection for electrical devices.
- Screw connection for secure connection
- Suitable for mounting on mounting rails or direct installation
- Temperature range of -20 °C to 60 °C
- Meets the VDE 0620-1 standard.
Item number | 20026369 |
Manufacturer | Phoenix Contact |
Category | Passive electronic components |
Manufacturer no. | 804025 |
Release date | 16.3.2022 |
External links | |
Minimum order | 4 |
Minimum order | 4 |
Colour | Green |
Exact colour description | Green |
Material group | Plastic |
Material | POLYAMIDE |
Max. temperature | 60 °C |
Min. temperature | -20 °C |
Manufacturer Type | EO-CF, GN, UT |
Nominal power | 1600 W |
Max. operating voltage | 250 V |
Operating voltage | 250 V |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 Piece |
Scope of delivery | 1 piece |
Length | 6 cm |
Width | 4.50 cm |
Height | 7.50 cm |
Weight | 73.53 g |
