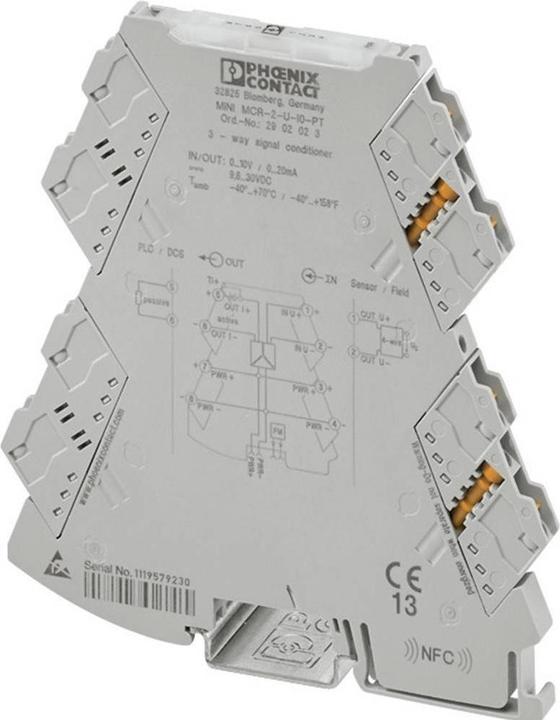

Phoenix Contact Signal conditioner - MINI MCR-2-U-PT

Input type: Voltage
Output type: Voltage
Signal shaper type: Isolation amplifier
Input range: 0 to 10 V
Output range: 0 to 11 V
Supply voltage: 9.6 to 30 V DC
Mounting type: DIN rail
Sensor compatibility: Transmitter
Operating temperature min: -40°C
Operating temperature max: +70°C
Series: MINI MCR

Signal conditioner MINI Analog Pro. The Mini Analog Pro signal conditioners from Phoenix Contact are the first 6 mm series with plug-in connection technology. The latest switching technology makes applications faster and easier, and the signal conditioner features an extremely compact and highly visible housing, easily accessible connection points, and current measurement. Users also benefit from easy configuration via DIP switches and advanced configuration via software or apps for your smartphone without the need for additional accessories. In addition, NFC communication is supported. Easy commissioning and maintenance: Measurement of signals without disconnecting current loops and optional disconnect function. Excellent signal quality available with extended supply voltages and operating temperatures for a wide range of applications. Wiring with screw connection or tool-free plug-in technology.
