Phoenix Contact Quint4 Diode, 48 V DC, 2x20 or 1x40 A

AC or DC input voltage: dc
AC or DC output voltage: dc
Minimum input voltage: 30V dc
Output voltage: 48V dc
Minimum output voltage: 48V dc
Maximum output voltage: 48V dc
Output current: 40A
Number of outputs: 1

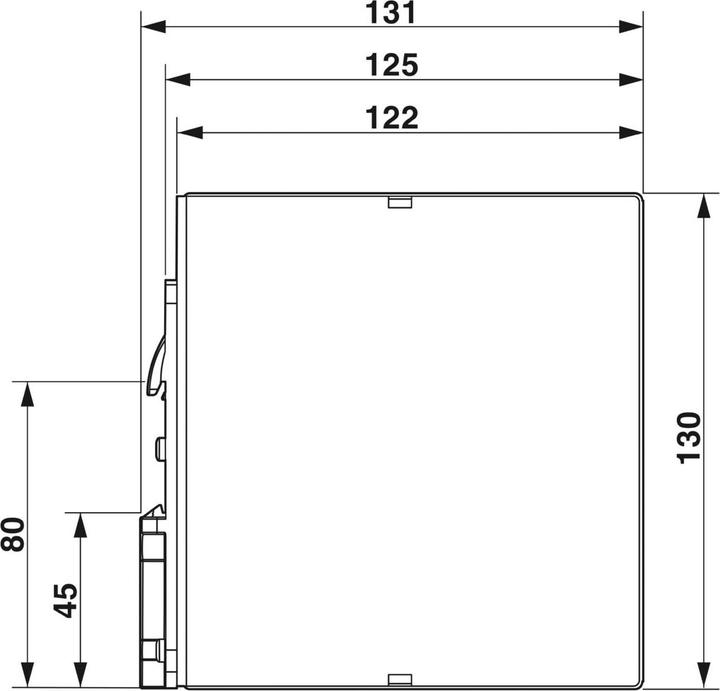

Width: 125mm
Protection features: Protection against hazardous body current

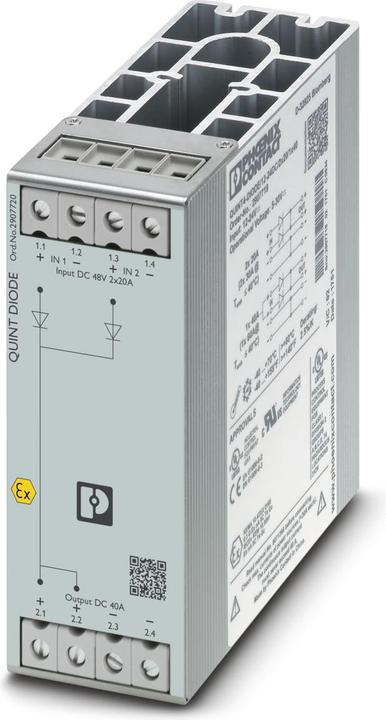

QUINT 4 diode module. The QUINT 4 diode is the ideal choice for easily decoupling power supplies, as the DIN rail diode module provides consistent redundancy. Diode modules decouple power supplies that are connected in parallel and ensure a reliable power supply. A short circuit no longer affects the load, whether it occurs at the output of one of the power supplies or in the line from the power supply to the diode. A short circuit in the power supply output circuit or in the supply lines to the diode module no longer affects the load. The system remains reliably powered. Simple decoupling of power supplies operating in parallel ensures a high degree of availability. Features and benefits: flexible, robust design, consistent redundancy up to the load.
