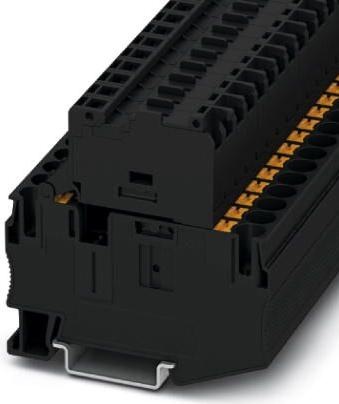

Phoenix Contact PT 6-HESI (6,3X32) 3211870 Fuse feed-through terminal 0.50 mm² 6 mm² Black 50 pcs.

The PT 6-HESI fuse terminal block from Phoenix Contact is a reliable solution for electrical connections in various applications. This terminal is designed for use with G-type fuses (6.3 x 32 mm) and provides a safe and efficient way to protect circuits. With a connection range of 0.5 mm² to 10 mm² and a rated current capacity of up to 10 A, it is versatile in use. The terminal is suitable for mounting on DIN rails and allows for easy installation in control cabinets and other electrical systems. Its robust design and the use of high-quality materials ensure a high temperature resistance of up to 105 degrees Celsius, making it ideal for demanding environments. The compact width of 8.2 mm enables space-saving arrangements in electrical installations.

• Push-in connection for easy and quick wiring
• Suitable for G-type fuses (6.3 x 32 mm)
• Temperature resistant up to 105 °C
• Mounting on DIN rails (NS 35/7.5 and NS 35/15)
• Versatile connection range from 0.5 mm² to 10 mm².
