Phoenix Contact Power connector
Product details

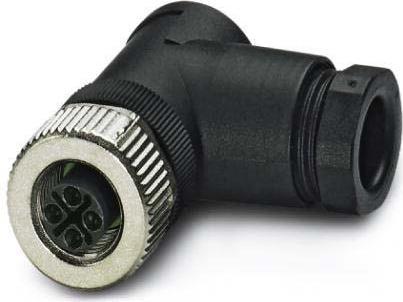

Phoenix Contact Power connector SACC-M12FRS-#1419642 Manufacturer :Phoenix Contact Designation :Power connector Type :SACC-M12FRS-#1419642 Contact design :Socket Diameter of connector :20 mm Thread size (metric) :12 Number of control contacts :3 For cable outer diameter :6..8 mm Housing version :angled Rated current In :16 A Ambient temperature :85 °C Rated voltage :630 V Overvoltage category :III Pollution degree :3 Connectable conductor cross-section, fine-stranded without ferrule :0.75..1.5 mm² Connectable fine-stranded conductor cross-section with ferrule :0.75..1.5 mm² Connectable solid conductor cross-section :1.5 mm² Connectable stranded conductor cross-section :0.75..1.5 mm² Type of electrical connection :screw connection Material of contact coating :gold Material of housing :other Coating of housing :other Material of threaded ring :other Type of locking :other Flammability class of insulating material according to UL 94 :V0 With protective conductor :no Protection class (IP), mounted :IP67 Min. number of mating cycles :100 Number of mating cycles :100 Shielded :no With status indicator :no Phoenix Contact power connector SACC-M12FRS-#1419642: further details Power connector, 3-pole, angled M12 socket, coding: S, screw connection, knurled material: zinc die-cast, nickel-plated, cable gland Pg9, cable outer diameter 6 mm ... 8 mm, for alternating current up to 16 A / 630 V , EAN: 4055626181806.
