Phoenix Contact Phoenix Decentralized I/O device 16 inputs/outputs AXLE PN D
Delivered between Thu, 11.9. and Wed, 1.10.
free shipping
Product details

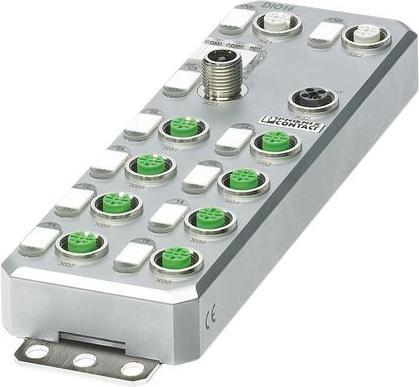

Description Decentralized I/O device - AXL E PN DIO16 M12 6M Axioline E-PROFINET device in metal housing with 16 configurable inputs or outputs, 24 V DC, M12 fast connection technology. Technical data: Number of outputs max.: 16 Number of digital inputs max.: 16 Operating voltage (num): 24 V/DC Prod. part no.: 2701517 Product dimension, width: 60 mm Product dimension, height: 185 mm Product dimension, length: 38 mm PLC component (categorization): PLC expansion module Protection class: IP65/67 Type (manufacturer type): AXL E PN DIO16 M12 6M Ambient temperature (max.): 60 °C Ambient temperature (min.): -25 °C.
Automation functions | Expansion module |
Item number | 14164265 |
Manufacturer | Phoenix Contact |
Category | Home automation |
Manufacturer no. | 2701517 |
Release date | 10.11.2020 |
Automation type | Industrial automation |
Automation functions | Expansion module |
Manufacturer Type | AXL E PN DIO16 M12 6M |
mounting style | Top-hat rail |
Electric current output | 0.50 A |
Power supply | Electrical connection |
Smart Home | Not compatible |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1 |
Length | 38 mm |
Width | 60 mm |
Height | 185 mm |
Weight | 725.90 g |
Specifications may include unverified machine translations.
