Phoenix Contact PCB Terminal Block 1790351

Ratings
BrandMore from Phoenix Contact
Delivered between 9.1.2026 and 16.1.2026
Supplied by
Conrad CH
free shipping

Product details

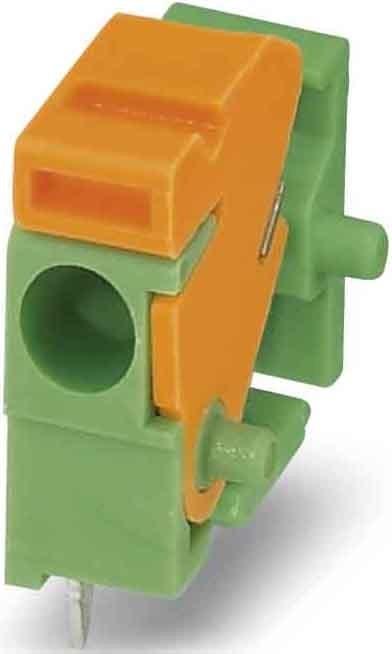

PCB terminal block with a nominal current of 17.5 A and a rated voltage of 630 V. It has a nominal cross section of 1.5 mm², a pitch of 7.62 mm, and one position. The connection method is push-in spring connection, and it is suitable for wave soldering. The conductor to PCB connection direction is 0°, and the color is green. It features a linear double pinning layout with a solder pin measurement of 3.4 mm. This single module allows for custom grouping of different numbers of positions. An end terminal block is required to terminate the block. Blocked items with various position counts are also available.

Key specifications

Cable + connector type
Various
Item number
10889056

General information

Manufacturer
Phoenix Contact
Category
Cables + Plugs
Manufacturer no.
1790351
Release date
30.3.2019
External links
Manufacturer's site (de), Manufacturer's site (de)

Colour

Colour
Green

Material

Material
Polyamide 6.6

Cable + Connector Features

Cable + connector type
Various
Max. temperature
100 °C
Min. temperature
-40 °C
mounting type
Push-through mounting
Manufacturer Type
62
Number of cores
1 x

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Length
0.76 cm
Width
1.61 cm
Height
1.36 cm

30-day right of return
24 Months Warranty (Bring-in)
