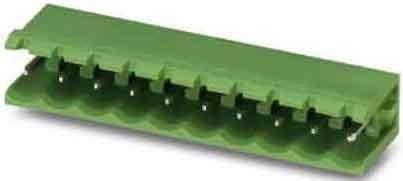

Phoenix Contact MSTB 2.5/ 7-G-5.08

Phoenix Contact connector MSTB 2.5/7-G-5.08

Manufacturer: Phoenix Contact
Designation: Connector for printed circuit boards
Type: MSTB 2.5/7-G-5.08
Connection type: PCB to cable
Connector design: Fixed connector
Contact design: Pin
Number of poles: 7
Number of rows of plug-in contacts: 1
Contact pitch: 5.08 mm
Terminal pitch: 5.08 mm
Angle PCB/contact: Other
Rated current: 12 A
Rated voltage: 320 V
Rated impulse voltage: 4 kV
Overvoltage category: III
Pollution degree: 2
Material of contact coating: Tin
Design of electrical connection: Other
Diameter of connecting pin: 1.4 mm
Length of pin: 3.5 mm
Material of insulating body: Other
Housing colour: Green
Flammability class of insulating material according to UL 94: V0
Operating temperature: -40 to 100 °C
Type of PCB fixing: Other
Type of fixing: Other
Type of banding: Cardboard (for SMD)

Further details:
PCB base strip, rated cross-section: 2.5 mm², colour: green, rated current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, contact type: Male, number of potentials: 7, number of rows: 1, number of connections: 7, part family: MSTB 2.5/..-G, grid dimension: 5.08 mm, assembly: Wave soldering, pin layout: Linear pinning, pin length: 3.5 mm, number of solder pins per potential: 1, connector system: COMBICON MSTB 2.5, orientation mating face: Standard, latching: Without, mounting type: Without, packaging type: Packed in carton.
