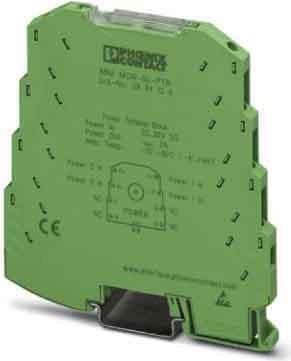

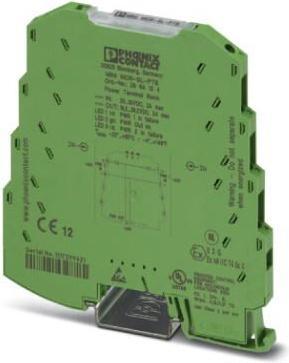

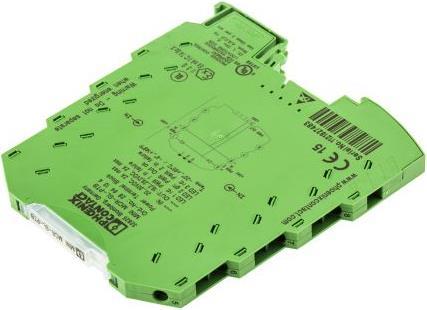

Phoenix Contact MINI MCR supply terminal

Output type: Voltage
Input range: 0 to 30 V dc
Output range: 0.8 to 30 V dc
Supply voltage: 30 VDC
Mounting type: DIN rail
Operating temperature min: -20°C
Operating temperature max: +65°C
Series: MINI MCR

MINI MCR - Accessories. Power supply terminal. Diode-decoupled redundant power supply for high system availability. Can be snapped onto DIN rail bus connector. Supplies up to 80 MINI MCR modules. LED status indicators. Carrier rail bus connector. Easy mounting on DIN rail 35mm. Bridging of supply voltage with automatic contacting when modules are snapped on. No interruption of the contact chain when a module is pulled.
