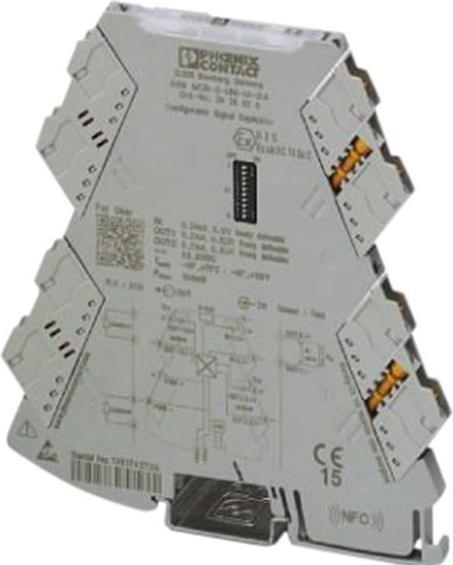

Phoenix Contact MINI MCR-2-UNI-UI-2UI

Input type: Current, voltage
Output type: Current, voltage
Signal shaper type: Signal duplicator
Input range: 0 to 12 V, 0 to 24 mA
Output range: 0 to 10.5 V, 0 to 21 mA
Supply voltage: 24 V DC
Mounting type: DIN rail
Operating temperature min: -40°C
Operating temperature max: +70°C
Operating temperature range: -40 to +70 °C

MINI MCR - Signal duplicators. 4-pole signal duplicators of the MINI MCR series for electrical isolation and duplication of analogue signals with spring cage connection. Power supply possible via the foot element (T-connector). Doubling of standard analogue signals at two current outputs. Extremely compact isolation amplifier for electrical isolation, conversion, amplification, filtering, and doubling of standard analogue signals.
