Product details
Input type: Voltage
Output type: Current, voltage
Signal converter type: Frequency converter
Input range: 30 V
Output range: 0 to 10.5 V, 0 to 21 mA
Supply voltage: 24 V DC
Mounting type: DIN rail
Sensor compatibility: Proximity switch
Operating temperature min: -40°C
Operating temperature max: +70°C
Special features: Supports NFC communication

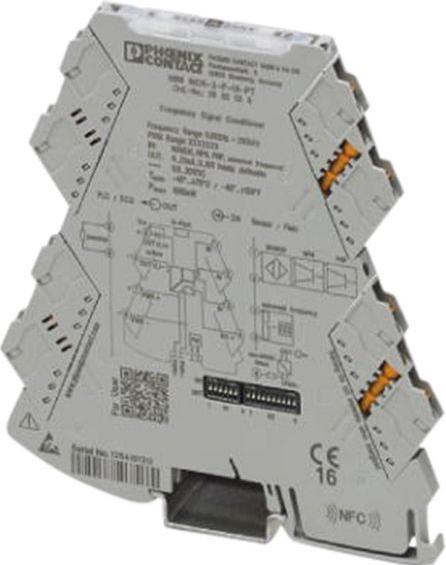

MINI MCR - Frequency transmitter. Universal configurable frequency transmitter of the MINI MCR series from Phoenix Contact for electrical isolation and for converting frequency and PWM signals into standard analog signals with transistor switching output. Features and benefits include configuration via DIP switches, error monitoring, and NFC communication.
Item number | 9719998 |
Manufacturer | Phoenix Contact |
Category | Home automation |
Manufacturer no. | 2902058 |
Release date | 24.9.2018 |
External links |
Manufacturer Type | MINI MCR-2-F-UI-PT |
Configuration effort | Manual configuration |
mounting style | Top-hat rail |
Electric current output | 0.02 A |
Power supply | Electrical connection |
Smart Home | Not compatible |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Frequency converter, MINI MCR-2-F-UI-PT 2902058 |
Length | 120 mm |
Width | 80 mm |
Height | 15 mm |
Specifications may include unverified machine translations.
