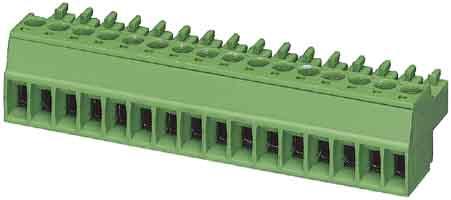

Phoenix Contact MC 1.5/16-ST-3.81

Phoenix Contact Connector Part Mini-Combicon MC 1.5/16-ST-3.81

Manufacturer: Phoenix Contact
Description: Connector part Mini-Combicon 8A/160V 3.81mm 16-pole
Type: MC 1.5/16-ST-3.81
Connection Type: Other
Contact Design: Socket
Number of Poles: 16
Number of Contact Rows: 1
Contact Pitch: 3.81 mm
Connection Pitch: 3.81 mm
Angle Contact/Wire Connection: Other
Rated Current In: 8 A
Rated Voltage: 160 V
Rated Impulse Voltage: 2.5 kV
Overvoltage Category: III
Degree of Pollution: 2
Connectable Wire Cross-Section Fine-Stranded without Ferrule: 0.14..1.5 mm²
Connectable Wire Cross-Section Fine-Stranded with Ferrule: 0.25..0.75 mm²
Connectable Wire Cross-Section Solid: 0.14..1.5 mm²
Connectable Wire Cross-Section Multi-Stranded: 0.08..0.5 mm²
Type of Electrical Connection: Screw Connection
Connectable Cable Type: Round Cable
Contact Coating Material: Tin
Contact Material: Copper
Insulation Body Material: Polyamide (PA)
Housing Material: Other
Housing Coating: Other
Housing Color: Green
Flammability Class of Insulating Material according to UL 94: V0
With Protective Ground: No
Operating Temperature: -40..100 °C
Protection Class (IP), mounted: Other

Phoenix Contact Connector Part Mini-Combicon MC 1.5/16-ST-3.81: Additional Details
PCB connector, nominal cross-section: 1.5 mm², color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: tin, contact type: socket (female), number of potentials: 16, number of rows: 1, number of poles: 16, number of connections: 16, article family: MC 1.5/..-ST, pitch: 3.81 mm, connection type: screw connection with strain relief, screw drive type: L slotted, connection direction wire/board: 0°, number of solder pins per potential: 1, plug system: COMBICON MC 1.5, locking: none, mounting type: none, packaging type: packed in carton.
