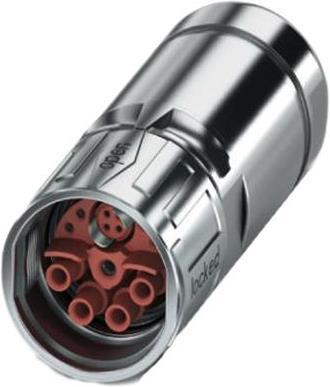

Phoenix Contact M23,SPEEDCON,4+4+4+PE,cable conn.,F.ctc.

Number of contacts = 4 + 4 + E
Mounting type = cable mounting
Connector size = M23
Connection type = Crimp
Shell size = 28.2mm
Rated current = 30 A @ 25 °C
IP Class = IP67
Contact Gender = Socket contact
Operating voltage = 630 V ac
Connection type = SPEEDCON
Housing orientation = Straight
Series = SPEEDCON
Housing material = Zinc
Operating temperature max = +130°C

M23 SPEEDCON connection cable, 4+4+4+PE. The SPEEDCON M23 connector from Phoenix Contact combines signal, data and power transmission in a single contact. The compact M23 connector features SPEEDCON technology for quick and easy connection and is an efficient solution for high power applications and CAT5 data transmission. The M23 connector offers a high degree of protection from media ingress and requires less system cabling; it is as reliable as it is versatile and offers a wide range of options for miniaturization and efficiency. Features and benefits: ; Contacts: 4 x signal, 4 x CAT5 data and 4 x power + PE ; 0.8 mm data connection ; SPEEDCON locking for fast, secure and simplified connections ; N-coding ; Rated current per power supply contact at 25 °C: 30 A ; Rated voltage for power supply contact: 630 V ac ; Ideal for space-constrained applications ; Ideal for smart devices requiring power, signal and data.
