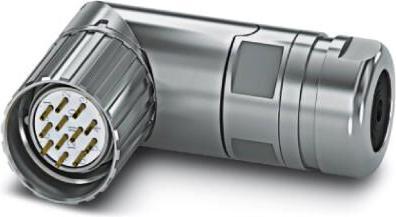

Phoenix Contact M23 Right-angled plug M23 connector, 19 poles, N-coded, soldered

Ratings
BrandMore from Phoenix Contact
Delivered between Tue, 5.8. and Sat, 23.8.
free shipping

Product details

The M23 right-angled connector from Phoenix Contact is a high-quality cable connector designed for a wide range of applications in electronics and automation technology. With 19 poles and an N coding, this connector provides a reliable connection and is ideal for use in shielded environments. The connector features a solder connection, ensuring a secure and durable link. The cable diameter range of 3 mm to 14.5 mm allows for flexible application in various cable configurations. The M23 connector is rated for temperatures from -40 °C to 125 °C, making it suitable for demanding environments. The screw locking mechanism ensures a stable connection, while the use of copper as the contact material guarantees high conductivity and longevity. This connector is a reliable component for your electrical connections.

  • 19-pole configuration with N coding
  • Solder connection for secure links
  • Temperature range from -40 °C to 125 °C
  • Screw locking for stable connection
  • Made from high-quality copper.

Key specifications

Plug type
M23
Cable + connector type
Plug connectors
Item number
30164414

General information

Manufacturer
Phoenix Contact
Category
Cables + Plugs
Manufacturer no.
1620292
Release date
25.4.2023

Material

Material group
Metal
Material
Copper

Cable + Connector Features

Cable + connector type
Plug connectors
Plug type
M23
Max. temperature
125 °C
Min. temperature
-40 °C
Connectors Design
Angled
Number of cores
19 x

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Weight
198 g
