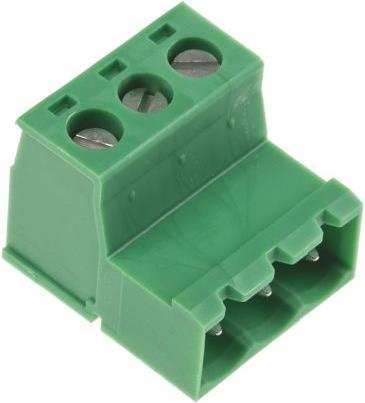

Phoenix Contact Inverted plug,5.08mmpitch,3way

Series: Classic Combicon IC
Number of outlets: 3
Mounting type: Cable mounting
Pitch: 5.08 mm
Rated current: 12 A
Connection type: Screw
Gender: Male
Material: Nylon
Color: Green
Contact plating: Tin

UL approval, EAC. Inverted plug connectors Phoenix Contact Classic Combicon IC with a 5.08 mm pitch and screw connection. These inverted plug connectors feature an inverted pin contact system, connection terminals for 12 A/320 V (Class III/2), and 0.2–2.5 mm² screw connections. They can be combined with inverted pin headers and connectors for shock-resistant applications. Part numbers with the prefix 18253 and 18254 have a screw flange. Part numbers with the prefix 18254 and 18256 (IC 2.5 – STGF) have a threaded flange for screw connection via MSTB connectors with a screw flange and can be converted with the IDC-DFR mounting frame into an inline or panel-mount terminal block.

Features and benefits: Well-known connection principle allows for global use. Easy replacement of circuit boards through plug-in modules. Inverted connectors with pin contacts for touch-safe device outputs or freely hanging cable-to-cable connections. Can be combined with the MSTB 2.5 series. Low temperature rise due to optimal contact force.
