Phoenix Contact Galvanic isolator

Input type: Voltage
Output type: Voltage
Signal conditioner version: Electrical isolation
Input range: 9.6 → 30 V dc
Output range: 10 V dc, 2.5 V dc, 5 V dc, 7.5 V dc
Supply voltage: 9.6 → 30 V dc
Mounting type: DIN rail
Operating temperature min.: -20 °C
Operating temperature max.: +65 °C
Operating temperature range: -20 → +65 °C

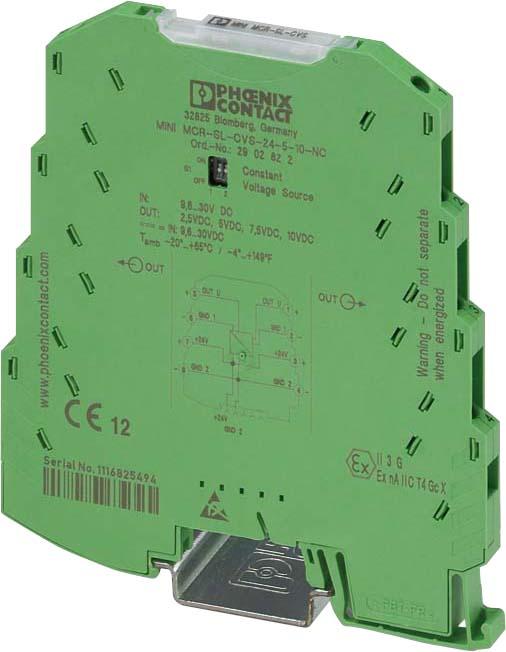

Galvanically isolated barriers Mini-MCR. The 6.2 mm wide configurable constant voltage source of the MINI MCR series is used to generate constant voltages with high precision. The input voltage can range from 9.6 V dc to 30 V dc. The DIP switches accessible from the side of the housing allow for the configuration of output voltages of 10 V dc, 5 V dc, 7.5 V dc, and 2.5 V dc. The input voltage can be applied either via terminal blocks on the modules or in conjunction with the DIN rail.
