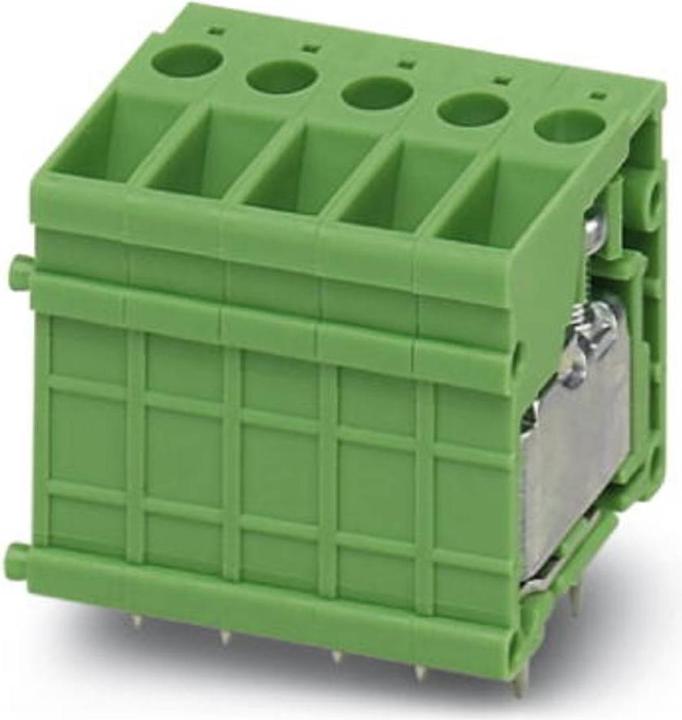

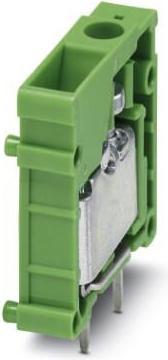

Phoenix Contact FRONT 4-V-6.35

The FRONT 4-V-6.35 from Phoenix Contact is a high-quality terminal block designed for use in various electronic applications. With a rated current of 32 A and a rated voltage of 320 V, this product provides a reliable connection for your circuits. The nominal cross-section of 4 mm² and a pitch of 6.35 mm allow for easy integration into existing systems. The front screw connection technology ensures a secure and stable connection, while the assembly is facilitated by wave soldering. The connection direction of 90° and the linear pinning layout contribute to flexibility during installation. Additionally, the item is available in various pole numbers, making it a versatile solution for different requirements.

• Maximum operating temperature of 100 °C and minimum operating temperature of -40 °C for versatile applications
• Made from high-quality tin for improved conductivity and durability
• Pin length of 5 mm for a reliable connection on the circuit board
• Compact dimensions with a height of 32 mm and a width of 7.62 mm, ideal for space-saving applications.
