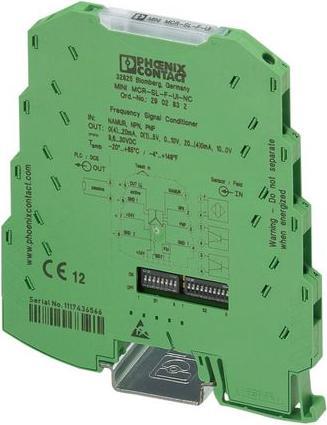

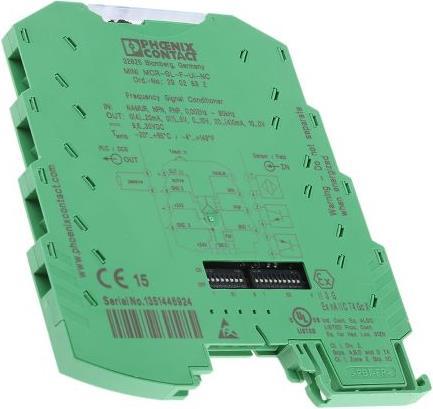

Phoenix Contact Frequency Transducer

Input type: Frequency
Output type: Current, voltage
Signal shaper type: Frequency to current, frequency to voltage
Input range: 0.002 Hz to 20 kHz
Supply voltage: 9.6 to 30 V DC
Mounting type: DIN rail
Sensor compatibility: NAMUR sensor
Operating temperature min: -20°C
Operating temperature max: +65°C
Operating temperature range: -20 to +65°C

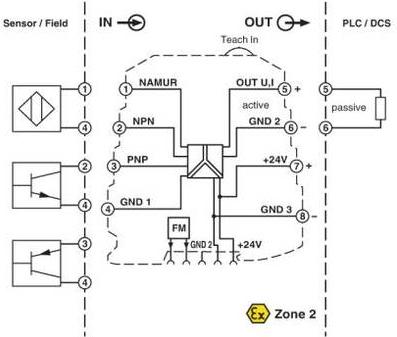

This frequency converter transforms frequency signals into current or voltage. It features a configurable 3-pole isolated frequency transducer, suitable for connecting NAMUR proximity sensors (IEC 60947-5-6 and EN 50227) as well as sensors with NPN and PNP outputs that generate frequency signals. The measured values are converted into a linear current or voltage signal. Configuration is done via DIP switches, and the frequency range can be adjusted with extended options using a push/turn knob (learning program wheel). The device supports error monitoring and includes a configurable 3-pole frequency transmitter. It also has an LED display for diagnostics and is approved for Ex zone 2 (nA). Connections are available in screw or spring cage options.
