Quantity discount

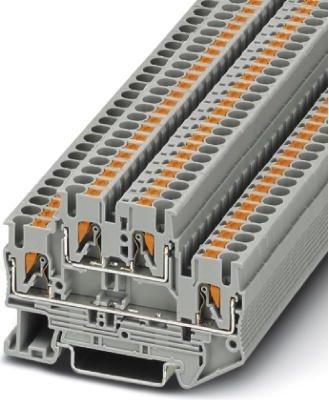

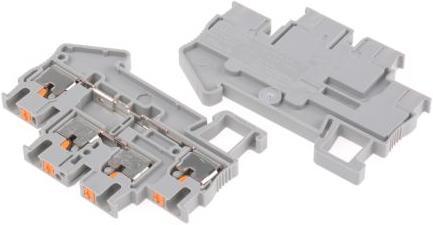

Phoenix Contact Double-level PTTB 2,5

Ratings
BrandMore from Phoenix Contact
Delivered between Wed, 15.4. and Fri, 17.4.
5 pieces in stock at supplier
Free shipping starting at 50.–

Product details

Series: Pittb Clipline
Wire size: 0.14 → 4 mm²
Color: Gray
Rated current: 22 A
Number of levels: Double
Connection type: Plug-in
Operating voltage: 500 V

Through and multi-conductor connection terminals. 50% less insertion force. Direct connection from 0.34 mm. Actuation button for separating conductors or wiring small cross-sections from 0.14 mm. The actuation button can be operated with any screwdriver. The compact design and front connection facilitate wiring even in tight spaces. Double bridge wave for individual current distribution and supply. Uniform and complete Clipline standard accessories.

Key specifications

Cable + connector type
Plug connectors
Cable length
0.11 m

General information

Item number
9947938
Manufacturer
Phoenix Contact
Category
Cables + Plugs
Manufacturer no.
3210567
Release date
22.10.2018

Colour

Colour
Grey

Material

Material group
Plastic
Material
POLYAMIDE

Cable + Connector Features

Cable + connector type
Plug connectors
Compatible hardware
Various
mounting type
DIN top-hat rail
Cable length
0.11 m
Number of cores
4x

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
3.96 kg
Climate contribution
CHF 0.11

Scope of delivery

Items per sales unit
50 pcs.
Scope of delivery
1x terminal block, 5, Alternative (alias)=PTTB 2, Cable-based connection = plug-in connection, Colour terminal block=grey, Flammability class = UL 94 V-0, Grid=5.2 mm, max =-999, min =-999, Nominal cable cross-section (mm²)=2.5 mm², Number of steps=2, Operating temperature, Positions=4, Rated current=22 A, Rated voltage = 500 V, Type=3210567, Wire diameter AWG max.=12 AWG, Wire diameter AWG min.=26 AWG, Wire diameter mm2 max.=4 mm², Wire diameter mm2 min.=0.14 mm²

Product dimensions

Length
6.80 cm
Width
0.52 cm
Height
4.75 cm

Package dimensions

Length
6.60 cm
Width
4.30 cm
Height
8.10 cm
Weight
12 g
