Phoenix Contact DIN rail, configurable PT100 transducer
Delivered between Fri, 15.5. and Mon, 18.5.
More than 10 pieces in stock at third-party supplier
More than 10 pieces in stock at third-party supplier
Supplied by
Elektro4000 DE
free shipping
Product details
Input type: Current
Output type: Current, Voltage
Signal shaper type: Electrical isolation
Input range: 1 mA
Output range: 0 to 10 V, 0 to 20 mA
Supply voltage: 24 Vdc
Mounting type: DIN rail
Sensor compatibility: RTD
Operating temperature min: -20°C
Operating temperature max: +65°C
Series: MINI MCR

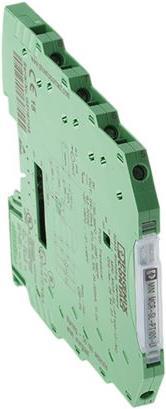

CE. MINI MCR - Transmitter for Pt100 and thermocouples. For Pt100 or thermocouples, measuring range and output signal configurable with 3-way isolation. Diagnostic LED for error evaluation. Power supply via supply terminal and mounting rail bus connector possible. Screw or spring-cage connection. Construction width: 6.2 mm.
Automation type | Sensor |
Item number | 9944951 |
Manufacturer | Phoenix Contact |
Category | Home automation |
Manufacturer No. | 2864273 |
Release date | 22.10.2018 |
Automation type | Sensor |
Configuration effort | Manual configuration |
mounting style | Top-hat rail |
Electric current output | 0.02 A |
Power supply | Electrical connection |
Smart home | Not compatible |
Country of origin | China |
CO₂ emissions | 29.26 kg |
Climate contribution | CHF 0.70 |
Length | 93.10 mm |
Width | 6.20 mm |
Height | 102.50 mm |
Weight | 97.70 g |
Specifications may include unverified machine translations.
