Product details

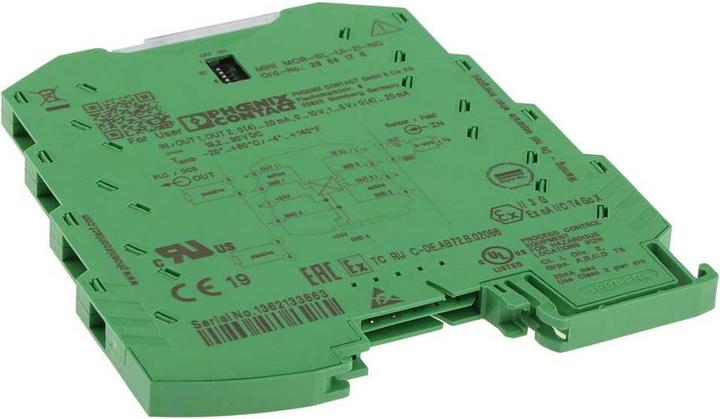

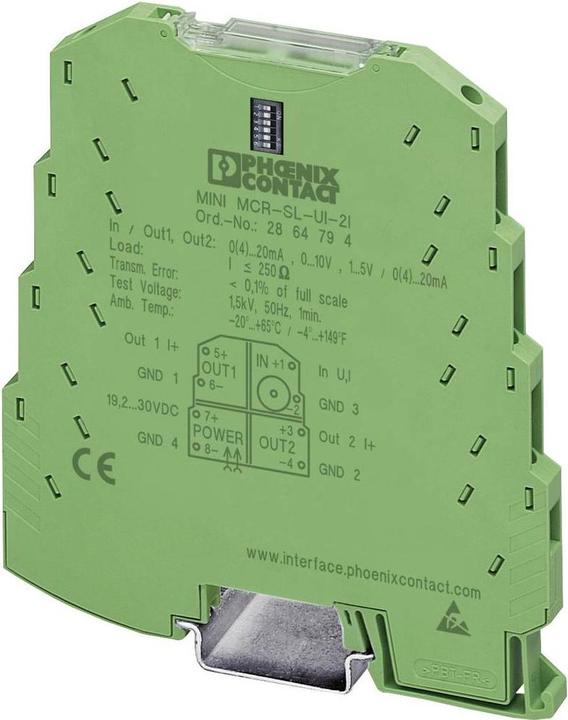

Phoenix Contact 4-Way Signal Splitter MINI MCR-SL-UI-2I-NC
Manufacturer: Phoenix Contact
Designation: 4-Way Signal Splitter
Type: MINI MCR-SL-UI-2I-NC
Power Supply Type: Other
Rated Supply Voltage DC: 19.2..30 V
Number of Input Ranges 0 V ... 10 V: 1
Number of Input Ranges 1 V ... 5 V: 1
Number of Input Ranges 0 mA ... 20 mA: 1
Number of Input Ranges 4 mA ... 20 mA: 1
Number of Output Ranges 0 mA ... 20 mA: 2
Number of Output Ranges 4 mA ... 20 mA: 2
Number of Channels: 2
Fault Signal Output: No
Intrinsically Safe according to EN 60947-5-6 NAMUR: No
Galvanic Isolation between Inputs: No
Galvanic Isolation between Input and Output: Yes
Galvanic Isolation between Output to Output: Yes
Galvanic Isolation between Supply Voltage and all other Circuits: Yes
Height: 93.1 mm
Width: 6.2 mm
Depth: 101.2 mm
Power Consumption: 0.6 W
Load: 250 Ohm
Operating Temperature: -20..60 °C
Temperature Drift: 0.01 %/K
Device Design: Mounting Device
Type of Electrical Connection: Screw Connection
Mounting Type: Snap Mounting
Rail Mounting
Protection Class (IP): IP20
Phoenix Contact 4-Way Signal Splitter MINI MCR-SL-UI-2I-NC: Additional Details
4-Way Signal Splitter for galvanic isolation and duplication of analog signals, with screw connection, standard configuration.
EAN: 4017918974800.
