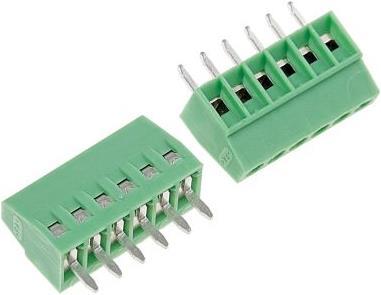

Phoenix Contact 6 way PCB vertical mount terminal,2.54mm

Minimum order 5
Ratings
Delivered between Tue, 17.6. and Wed, 18.6.
More than 10 items in stock at third-party supplier
Supplied by

Product details

Number of contacts: 6
Pitch: 2.54 mm
Number of rows: 1
Mounting type: Through-hole mounting
Gender: Female
Connection type: Screw
Type: PCB terminal block
Rated current: 6 A
Housing orientation: Straight
Color: Green
Operating voltage: 320 V
Series: COMBICON MPT
Material: Nylon
Width: 6.2 mm

Phoenix Contact COMBICON MPT PCB terminal blocks, 2.54 mm. This terminal block from the COMBICON MPT series by Phoenix Contact is compact and versatile, featuring a connection system that can be used worldwide. The small design of this PCB terminal block allows for the connection of two conductors, ensuring maximum space savings. Additionally, the COMBICON MPT series terminal block has a high contact force, which ensures minimal temperature rise. Features and benefits: compact design, polyamide insulation according to UL 94 V-0, temperature range: -40 °C to +120 °C. Product application information: This screw terminal for PCB mounting is ideal for any application with limited board space, as well as for miniature rack systems or telecommunications equipment that require high contact density.

Key specifications

Item number
9903267

General information

Manufacturer
Phoenix Contact
Category
Cables + Plugs
Manufacturer no.
1725698
Release date
16.10.2018
External links
Manufacturer's site (de)
Minimum order
5
Minimum order
5

Colour

Colour
Green

Cable + Connector Features

Max. temperature
105 °C
Min. temperature
-40 °C
mounting type
Push-through mounting
Manufacturer Type
6-2,54, MPT 0.5
Number of cores
6 x

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
100 Piece

Product dimensions

Length
4.40 cm
Width
1.57 cm
Height
1.20 cm
