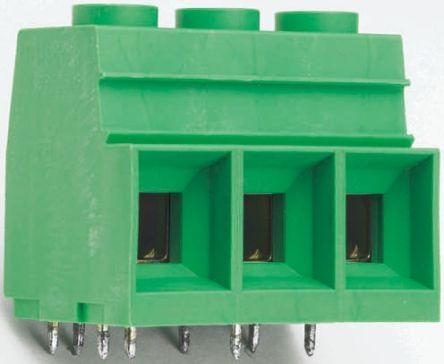

Phoenix Contact 3 way PCB screw terminal,125A 15mm pitch
Product details
Number of contacts: 3
Grid: 15mm
Number of rows: 1
Mounting type: Through hole
Gender: Female
Connection type: Screws
Type: PCB terminal block
Rated current: 125A
Housing orientation: Straight
Color: Green
Operating voltage: 1 kV
Series: COMBICON MKDSP
Material: Nylon
Width: 31mm
Phoenix Contact COMBICON MKDSP PCB terminal blocks with a 15 mm grid. The COMBICON MKDSP 25 series features PCB terminal blocks with 35 mm² spring terminals and a high current carrying capacity of 125A. These terminal blocks are suitable for vertical through-hole mounting and include an integrated test connection and a protective guide. Features and benefits include unrestricted UL 600 V approval, low temperature rise due to optimum contact force, and quick and easy testing with the integrated test option, all within a 15 mm pitch.
