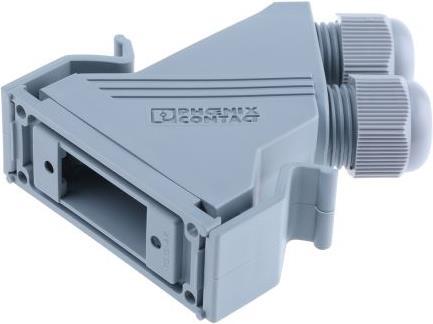

Phoenix Contact 15 way IP67 std Dsub plug connector kit

Ratings
BrandMore from Phoenix Contact
Delivered between Wed, 8.4. and Thu, 9.4.
Only 1 piece in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

Number of contacts: 15
Set type: D-Sub connector set
Housing material: Polyamide
Housing orientation: Angled
Series: PLUSCON

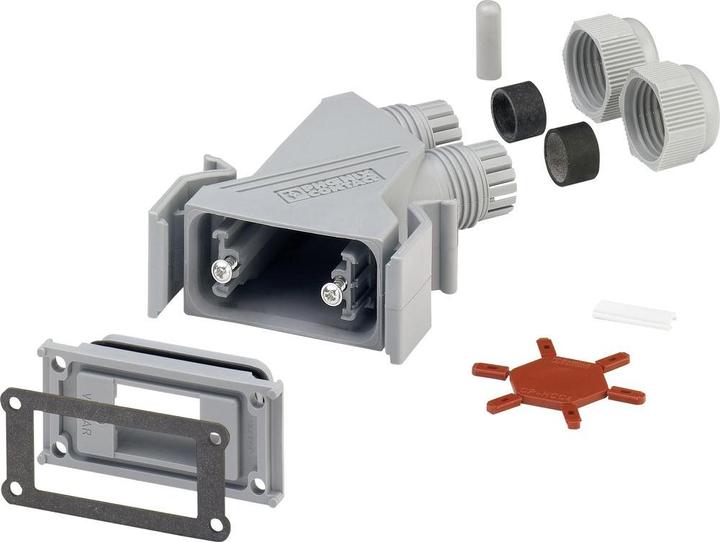

Recommended flush-type connectors: Order number 493-2355; Circular connectors: Order number 493-2248. Assortments of Phoenix vario-sub connectors. Connector set IP67 includes 9-, 15-, and 25-pole D-Sub connectors (must be ordered separately) with:

  • Plastic connector housing
  • 9-pin version for cable diameters 3 to 9 mm
  • 15-pin version for cable diameters 3 to 10 mm
  • 25-pin version for cable diameters 5 to 13 mm
  • Mounting screws for D-Sub inserts (sold separately)
  • Identification labels
  • Plate mounting frame and gasket for mounting on an enclosure
  • Coding profiles

The EMC option includes the same features as the standard set plus:

  • EMC inner sheath for connector housing
  • EMC sheath for connecting the D-Sub contact insert in the plate mounting frame to the housing wall.

Key specifications

Cable + connector type
Plug connectors
Plug type
DC connector

General information

Item number
10097367
Manufacturer
Phoenix Contact
Category
Cables + Plugs
Manufacturer no.
1689129
Release date
12.11.2018

Colour

Colour
Grey

Material

Material group
Plastic
Material
Polyamide

Cable + Connector Features

Cable + connector type
Plug connectors
Plug type
DC connector
Compatible hardware
Various
Temperature
-40 - 80 °C
Max. temperature
80 °C
Min. temperature
-40 °C
Connectors Design
Flange bushing, Flange plug
Number of cores
15x

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
84.15 kg
Climate contribution
CHF 1.37

Scope of delivery

Items per sales unit
1 pcs.
Scope of delivery
Sensor/actuator data connectors

Product dimensions

Weight
60.50 g

30-day right of return
24 Months Warranty (Bring-in)
