Phanteks Enthoo Evolv X

ATX, mATX, Mini-ITX, E-ATX
69Ratings
BrandMore from Phanteks
Currently out of stock

Colour

Product details

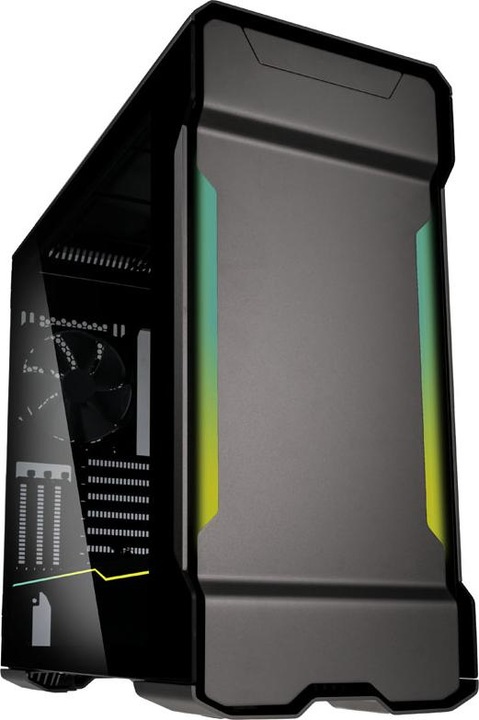

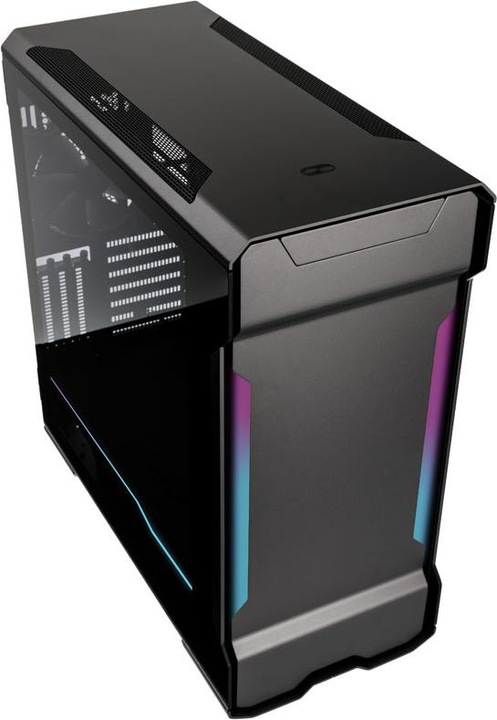

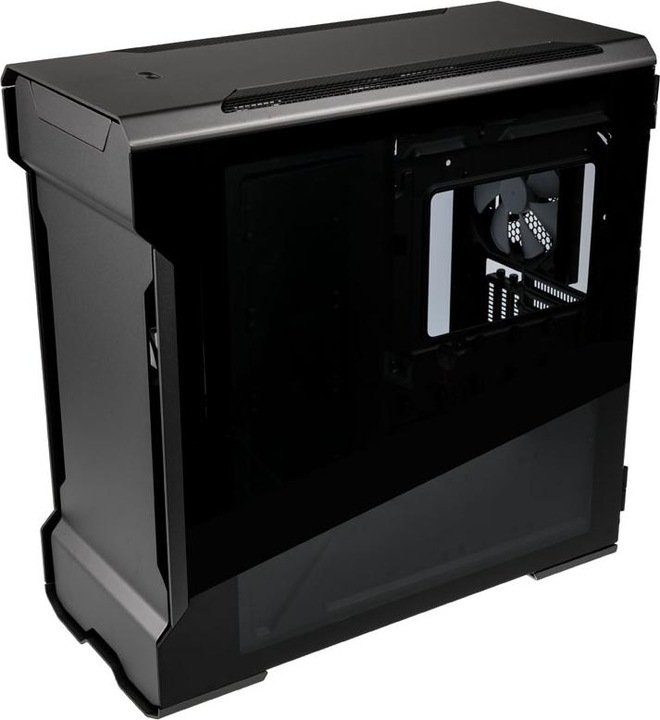

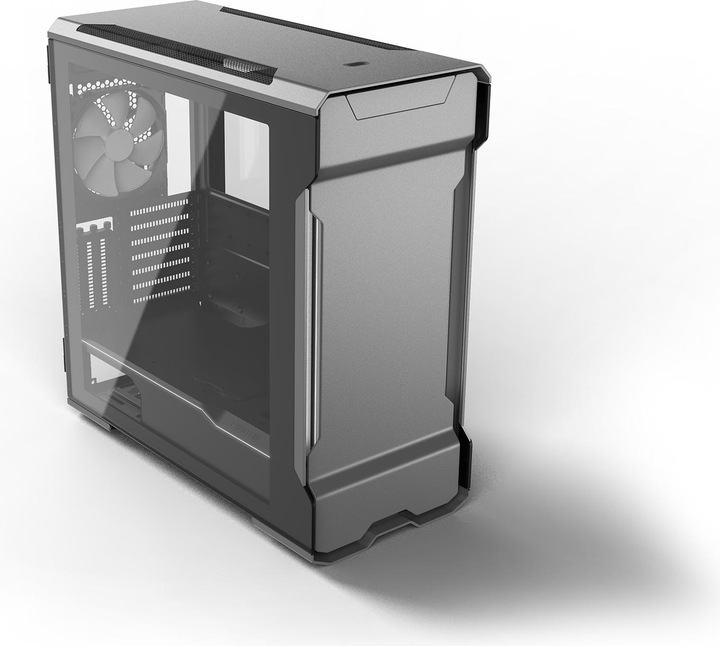

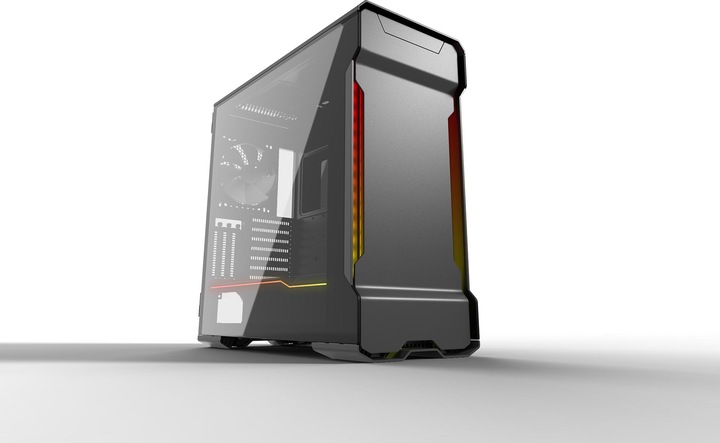

The Phanteks Enthoo Evolv X is a colossus made of steel, aluminum, and tempered glass. This midi-tower from the Enthoo Evolv series is a fusion of design and functionality, featuring integrated addressable RGB LED lighting, optimized airflow, and space for the simultaneous installation of two triple radiators.

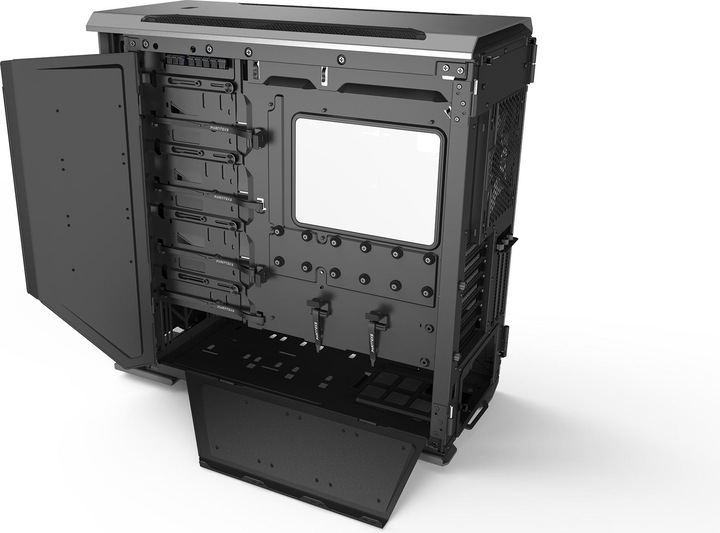

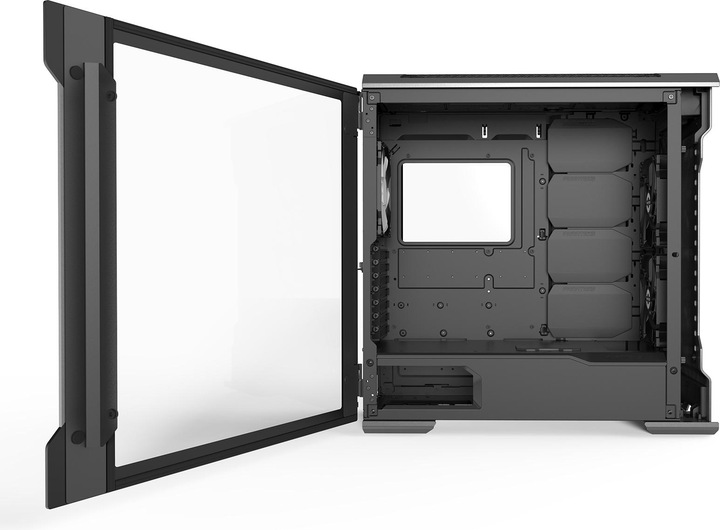

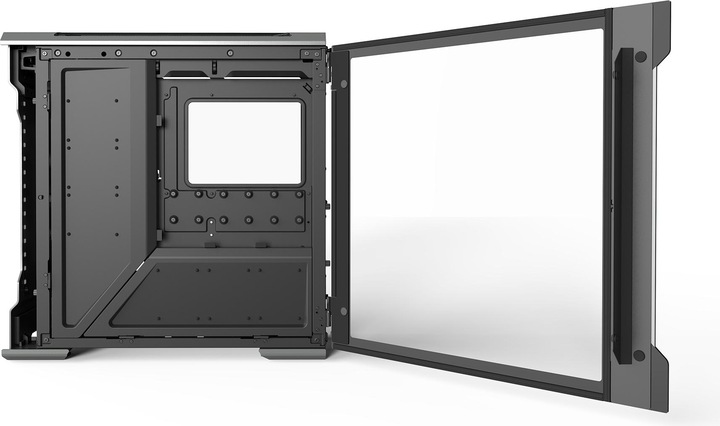

The Evolv X interior is designed to ensure no space is wasted, giving you ultimate flexibility to customize your desired configuration. Whether it's a high-end water cooling showcase, a professional data storage system, or even a dual-system PC, the Evolv X offers everything in one midi PC case.

Key specifications

PC case design
Midi Tower
Number of 3.5" drive slots (internal)
10 x
Max. length graphics card
435 mm

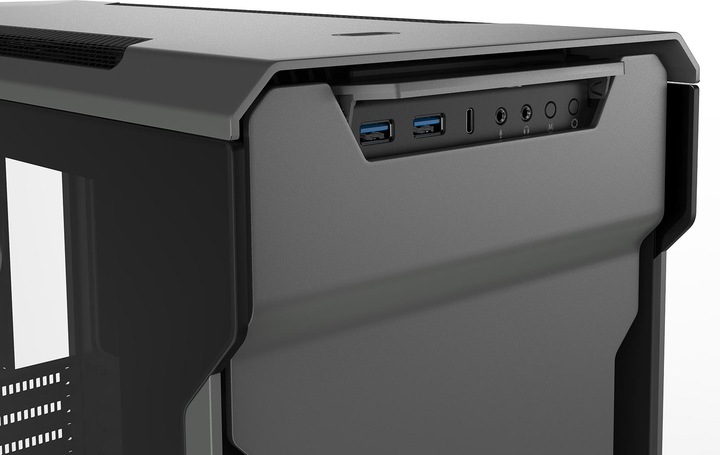

Front connectors
2x USB 3.0, Headphones, Microphone, Power button, RGB controller
PC case features
Modular HDD cage, Motherboard tray, Side windows
Max. height CPU cooler
190 mm
Item number
9474371

General information

Manufacturer
Phanteks
Category
PC case
Manufacturer no.
PH-ES518XTG_DAG01
Release date
26.9.2018

Colour

Colour
Grey
Exact colour description
Grey

Material

Material group
Glass, Metal
Material
anodised aluminium, Powder-coated steel, Toughened glass

PC case properties

PC case design
Midi Tower
Form factor
ATX, E-ATX, Micro ATX (mATX), Mini-ITX
Number of 3.5" drive slots (external)
6 x
Number of 3.5" drive slots (internal)
10 x
"Number of 2.5"" drive slots"
6 x
Max. length graphics card
435 mm
Max. height CPU cooler
190 mm
PC case features
Modular HDD cage, Motherboard tray, Side windows

Connections

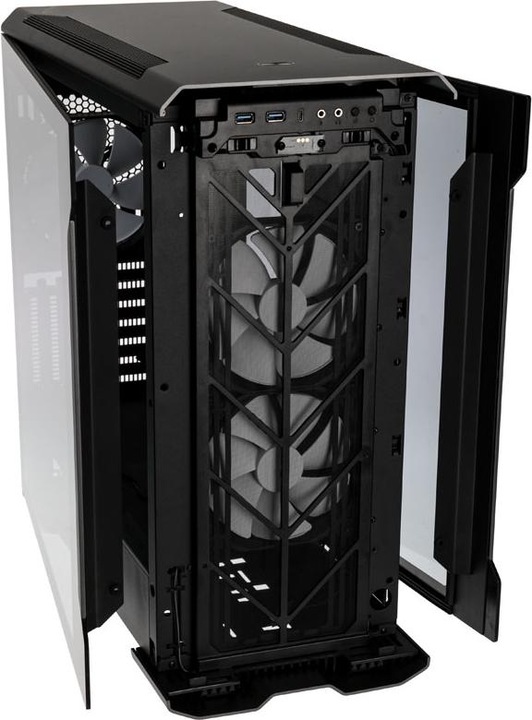

Front connectors
2x USB 3.0, Headphones, Microphone, Power button, RGB controller

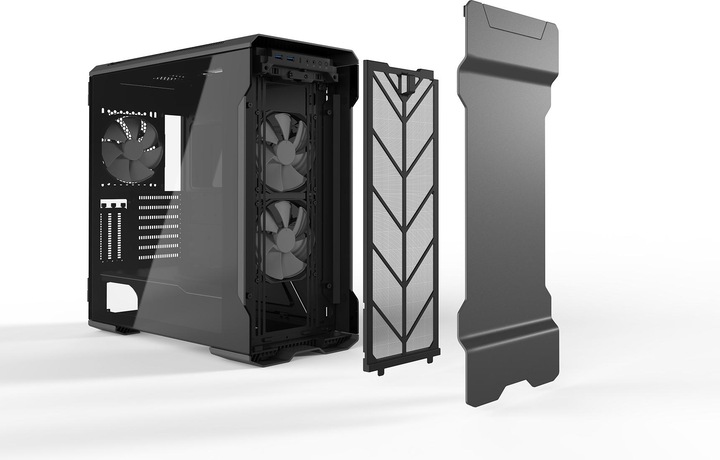

Cooling properties

Number of fans
3 x
Number of fan slots
7 x
Fan location
Front side, Rear side, Top side
Number of radiator mounts
3
Radiator locations
Front side, Rear side, Top side
Cooling properties
Water cooling possible

Front side

LED colour
without LED
Fans included
2x 140mm
Fan mount locations
3x 120mm, 3x 140mm
Radiator mount locations
1x max. 420mm

Rear side

LED colour
without LED
Fans included
1x 140mm
Fan mount locations
1x 120mm, 1x 140mm
Radiator mount locations
1x max. 140mm

Top side

LED colour
without LED
Fans included
Optional fan
Fan mount locations
2x 140mm, 3x 120mm
Radiator mount locations
1x max. 360mm

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Installation material

Product dimensions

Height
51 cm
Length
52 cm
Width
24 cm
Weight
15 kg

Package dimensions

Length
61 cm
Width
61 cm
Height
33 cm
Weight
16.96 kg
