Phanteks Eclipse P400 Tempered Glass

ATX, mATX, Mini ITX, E-ATX

Product details

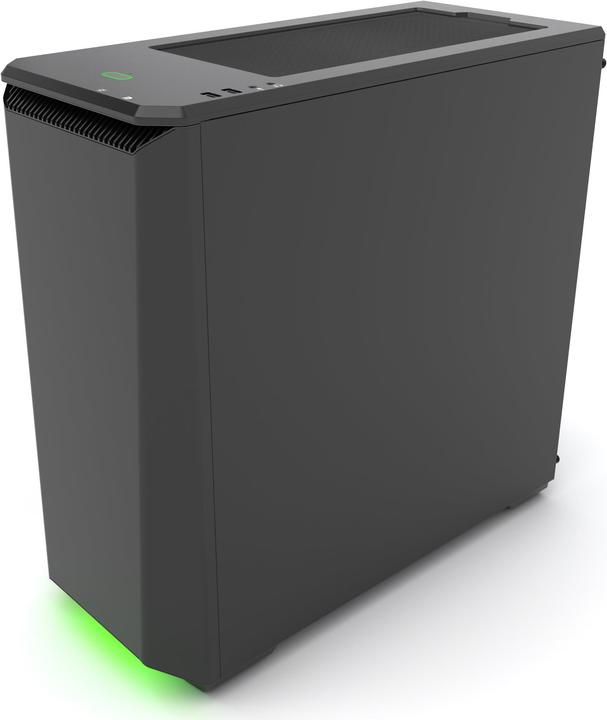

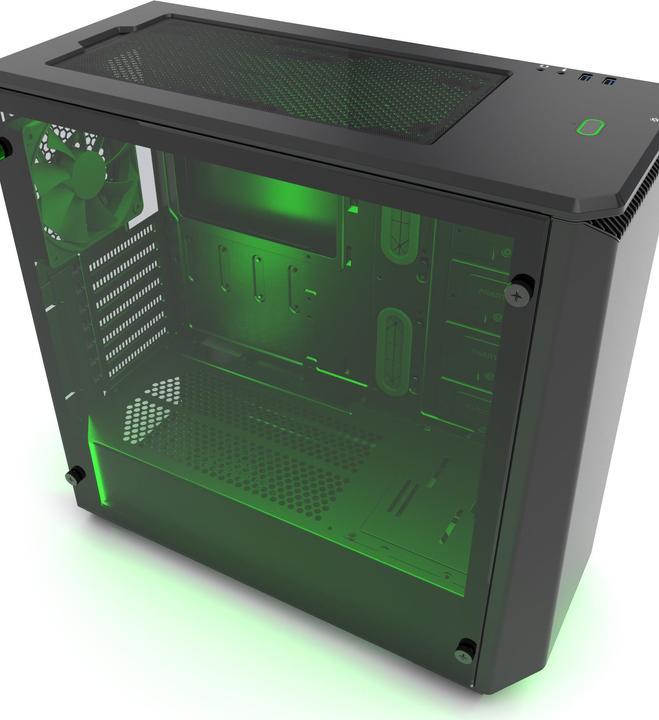

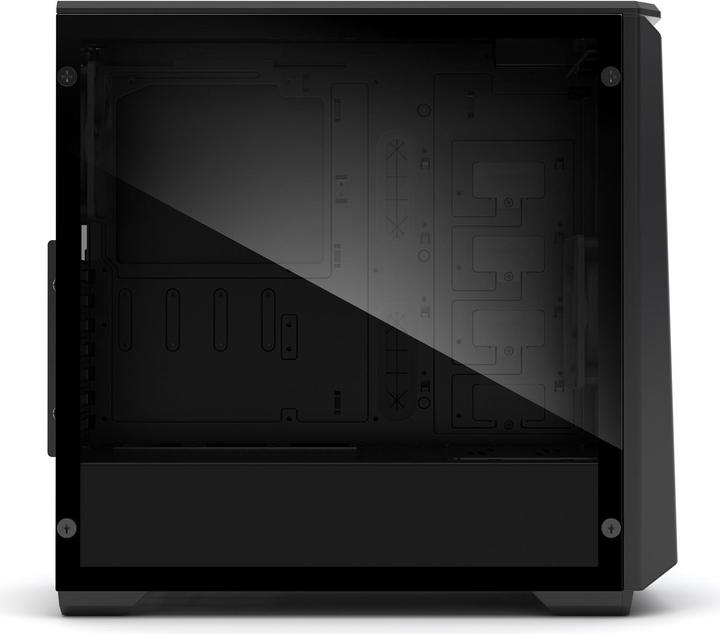

The Phantek P400 tempered glass case allows for a clean configuration in an elegant case with tempered glass window. With its RGB lighting you bring colour into this solid metal housing.

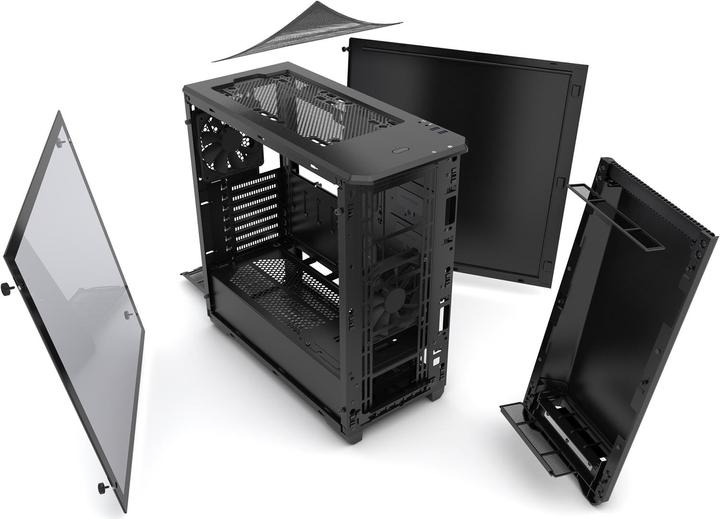

The P400 is ideal for beginners and PC assembly enthusiasts. Designed for Mini ITX, Micro ATX or ATX motherboards, up to seven additional boards can be added through an intelligent interior layout.

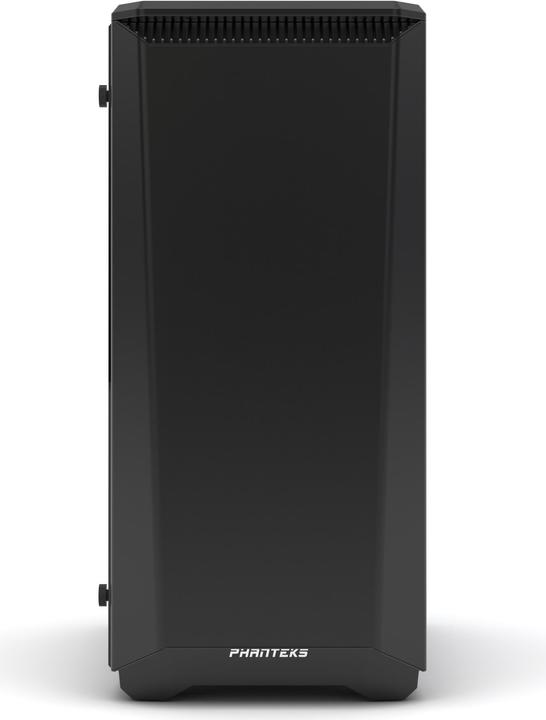

It also has external connectors on the front panel: 2 USB 3.0 ports, a headphone jack and a microphone jack. Slots for 120 mm or 140 mm fans are available for cooling: 1 120 mm fan for the front, 1 120 mm fan for the rear. You can also opt for water cooling.

Key specifications

PC case design
Midi Tower

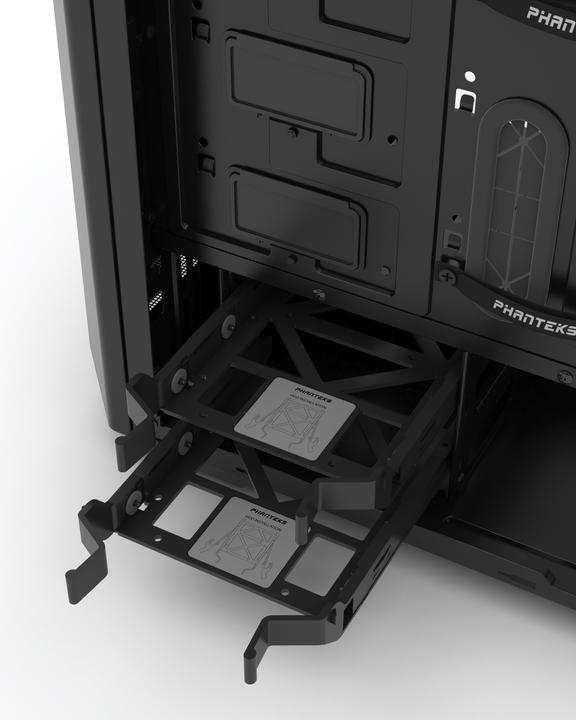

Number of 3.5" drive slots (internal)
2 x
"Number of 5.25"" drive slots"
0 x
Max. length graphics card
395 mm
Front connectors
Headphones
Microphone
USB 3.0
PC case features
Side windows
Item number
6279075

General information

Manufacturer
Category
PC case
Manufacturer no.
PH-EC416PTG_BK
Release date
2/28/2017
Sales rank in Category PC case
External links

Colour

Colour group
Black
Exact colour description
Black

Material

Material group
Glass
Metal
Plastic
Specific material description
ABS plastic
Glass
Steel

PC case properties

PC case design
Midi Tower
Form factor
ATX
E-ATX
Micro ATX (mATX)
Mini ITX
"Number of 5.25"" drive slots"
0 x
Number of 3.5" drive slots (external)
2 x
Number of 3.5" drive slots (internal)
2 x
"Number of 2.5"" drive slots"
2 x

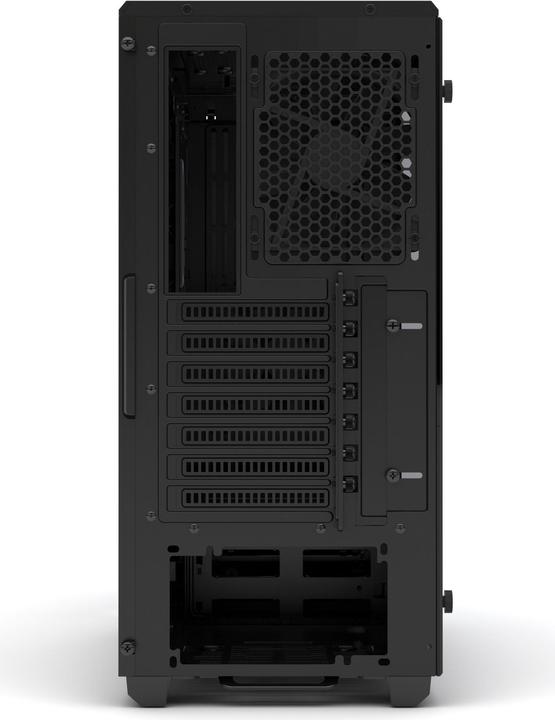

Number of expansion card slots
7 x
Max. length graphics card
395 mm
Max. height CPU cooler
160 mm
Max length of power supply
270 mm
PC case features
Side windows

Connections

Front connectors
Headphones
Microphone
USB 3.0

Cooling properties

Number of fans
2 x
Number of fan slots
5 x
Fan location
Front side
Rear side
Top side
Connectable fans (control)
2
Number of radiator mounts
2
Radiator locations
Front side
Cooling properties
Water cooling possible

Front side

Fans included
1x 120mm
Fan mount locations
2x 140mm
3x 120mm
Radiator mount locations
1x max. 280/360mm

Rear side

Fans included
1x 120mm
Fan mount locations
1x 120mm
Radiator mount locations
1x max. 120mm

Top side

Fans included
Optional fan
Fan mount locations
2x 120mm
2x 140mm
Radiator mount locations
No mounting possible

Scope of delivery

Scope of delivery
Installation material

Product dimensions

Height
49.50 cm
Length
47 cm
Width
21 cm
Weight
7.50 kg

Package dimensions

Length
58 cm
Width
54 cm
Height
33 cm
Weight
10 kg
