Product details

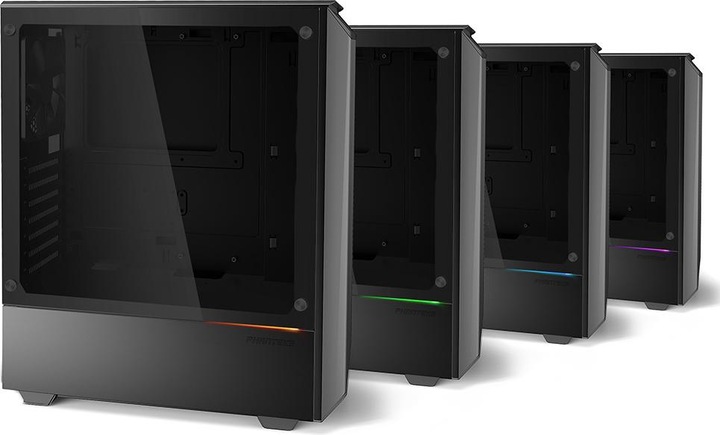

The cases of the Eclipse P300 series are aimed at beginners and also offer many interesting features for experienced PC enthusiasts. With a power button illuminated by RGB LEDs and an LED strip on the

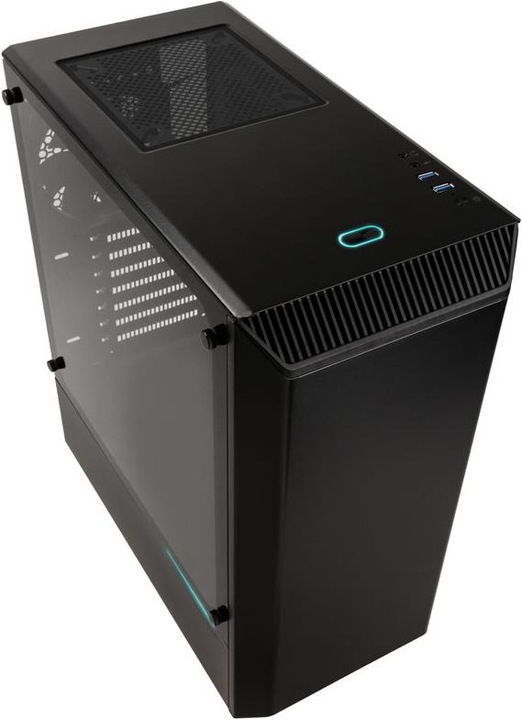

left side, the Dutch set colourful accents as usual. The special feature of the Eclipse P300 is without a doubt the modern side window made of tempered and tinted real glass, which allows a breathtaking view of the installed hardware and creates a noble appearance.

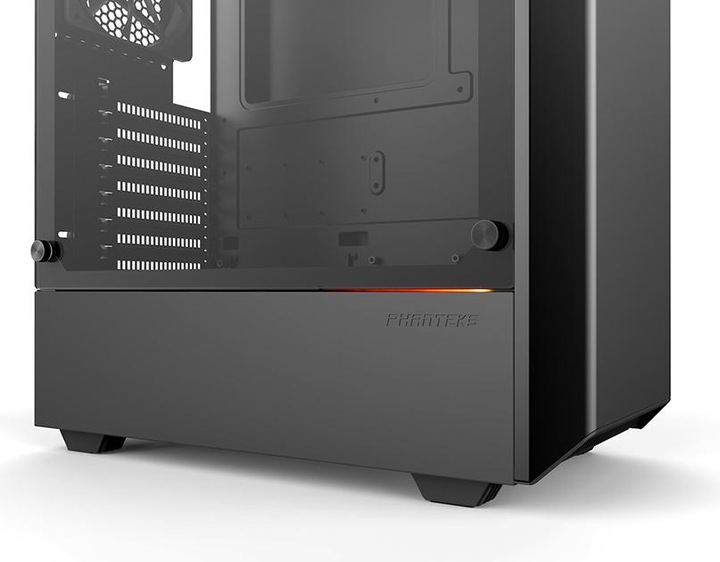

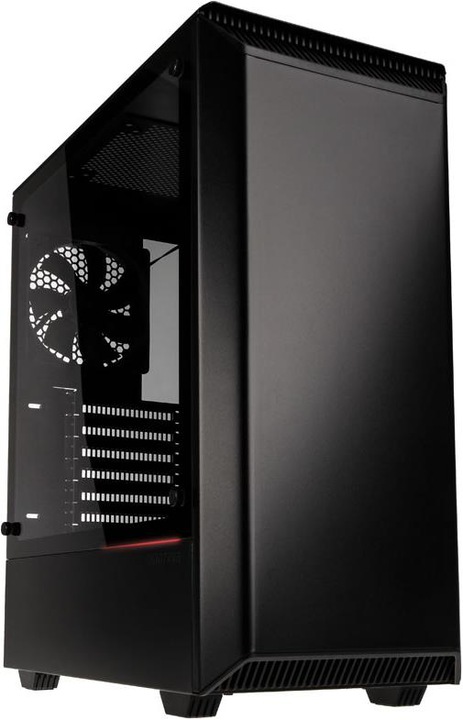

The Phanteks Eclipse P300 Midi-Tower from the Phanteks Eclipse series offered here already convinces optically with its clear lines and the noble, rather reserved design in black. The one-piece front panel and the large side window made of tinted tempered glass give the case a very noble look, which is further enhanced by the LED lighting below the huge tempered glass window. The slats on the upper front, which are also used for ventilation, provide a welcome contrast to the simplicity of the front fairing.

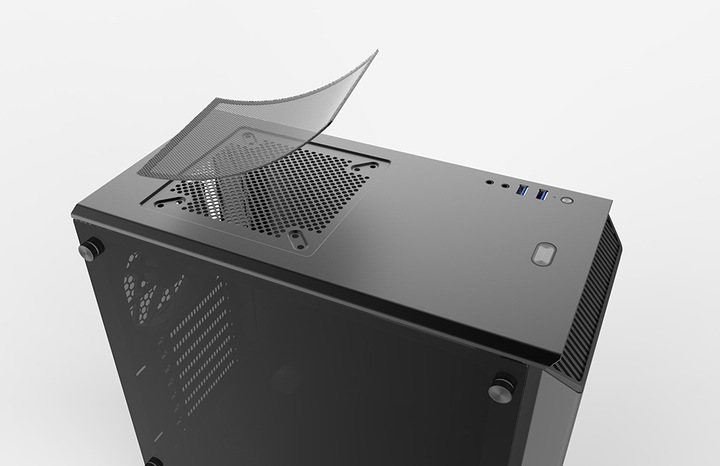

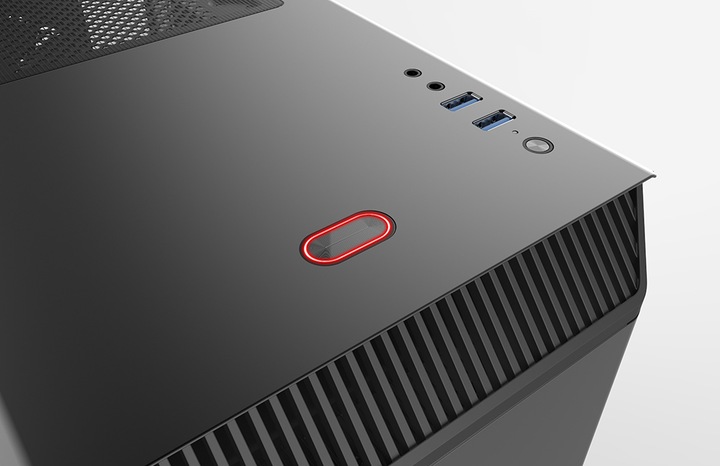

In the middle of the front area of the cover is the power button backlit with an RGB LED, while the two audio connections and the two USB 3.0 ports of the "Front" panel have been placed offset to the side to the right. The button for LED control can also be found here on the Eclipse P300. Most of the lid is covered by a large, removable dust filter, which acts like a large mesh grille and rests on a large ventilation grille.
The Phanteks Eclipse P300 Midi-Tower from the Phanteks Eclipse series offered here already convinces optically with its clear lines and the noble, rather reserved design in black. The one-piece front panel and the large side window made of tinted tempered glass give the case a very noble look, which is further enhanced by the LED lighting below the huge tempered glass window. The slats on the upper front, which are also used for ventilation, provide a welcome contrast to the simplicity of the front fairing.
In the middle of the front area of the cover is the power button backlit with an RGB LED, while the two audio connections and the two USB 3.0 ports of the "Front" panel have been placed offset to the side to the right. The button for LED control can also be found here on the Eclipse P300. Most of the lid is covered by a large, removable dust filter, which acts like a large mesh grille and rests on a large ventilation grille.
| PC case design | Desktop housing, Midi Tower |
| Max. length graphics card | 330 mm |
| Front connectors | 2x USB 3.0, Headphones, Microphone |

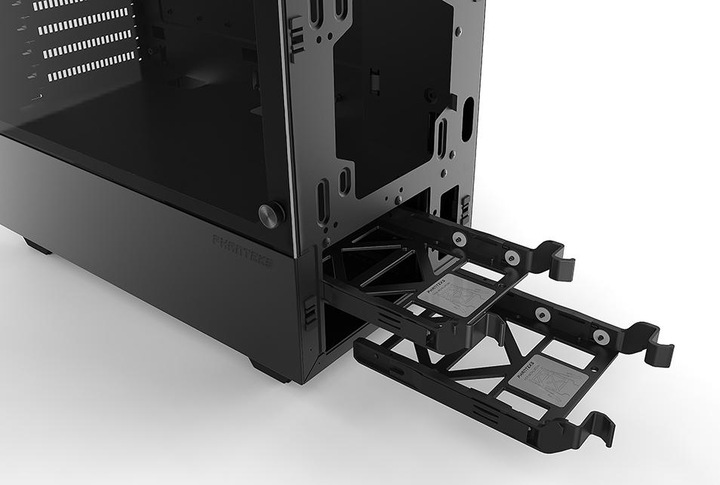

| PC case features | Modular HDD cage, Openings for water cooling, Quick-release fastener, Side windows |
| Item number | 6645347 |
| Manufacturer | |
| Category | |
| Manufacturer no. | PH-EC300PTG_BK |
| Release date | 9/28/2017 |
| External links | |
| May include power adapter | Yes |
| Colour group | Black |
| Exact colour description | Black |
| Material group | Glass |
| Specific material description | ABS plastic, Glass, Steel |
| PC case design | Desktop housing, Midi Tower |
| Form factor | ATX, Micro ATX (mATX), Mini ITX |
| "Number of 2.5""/3.5"" combination slots" | 2 x |
| "Number of 2.5"" drive slots" | 1 x |
| Number of expansion card slots | 7 x |
| Max. length graphics card | 330 mm |
| Max. height CPU cooler | 160 mm |
| Max length of power supply | 197 mm |
| PC case features | Modular HDD cage, Openings for water cooling, Quick-release fastener, Side windows |
| Front connectors | 2x USB 3.0, Headphones, Microphone |
| Number of fans | 1 x |
| Number of fan slots | 4 x |
| Fan location | Front side, Rear side, Top side |
| Number of radiator mounts | 2 |
| Radiator locations | Front side, Rear side |
| Cooling properties | Water cooling possible |
| Fan mount locations | 2x 140/120 mm |
| Radiator mount locations | 1x max. 280/240mm |
| Fans included | 1x 120mm |
| Fan mount locations | 1x 120mm |
| Radiator mount locations | 1x max. 120mm |
| Fan mount locations | 1x 120/140mm |
| Scope of delivery | Installation material |
| Height | 45 cm |
| Length | 40 cm |
| Width | 20 cm |
| Weight | 6 kg |
| Length | 50 cm |
| Width | 52 cm |
| Height | 29 cm |
| Weight | 6.94 kg |
Specifications may include unverified machine translations.
