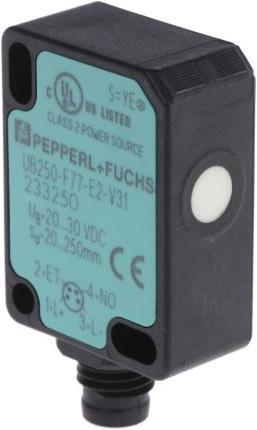

Pepperl & Fuchs Miniature Ultrasonic Sensor, Sr 250mm

The miniature ultrasonic sensor from Pepperl & Fuchs is a highly precise automation instrument designed for a variety of applications in industrial automation. With a detection range of 20 mm to 250 mm, this sensor provides a reliable solution for object detection and distance measurement. The sensor operates with a maximum supply voltage of 30 V and is suitable for use in a wide temperature range of -25 °C to 70 °C. Thanks to its compact design and IP67 protection rating, it is ideal for use in demanding environments where dust and moisture can pose challenges. The connection is made via a 4-pin M8 connector, facilitating integration into existing systems. The sensor is equipped with a switching frequency of 10 Hz, ensuring a fast response time and making it an effective solution for various automation tasks.

• Operating temperature range of -25 °C to 70 °C
• Detection range of 20 mm to 250 mm
• Switching frequency of 10 Hz for quick responses
• Robust polycarbonate housing
• IP67 protection rating for use in harsh environments.
