Peha Radio

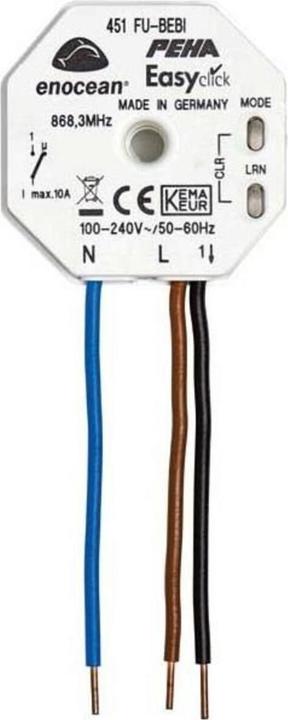

The bidirectional Easyclick receiver not only receives radio signals but also sends its status back with every change in state. Real switching states ON/OFF can be visualized, for example, on the remote control D 450 FU-HS 128. The Easyclick receiver is used for switching lighting and other electrical consumers. Various functions and parameters can be selected:

• Two-button operation ON/OFF (standard function)
• Single-button operation ON/OFF (toggle)
• Button operation (pulse)
• Hotel card switch with selectable delay time
• Staircase light with selectable duration and switch-off warning
• Automatic OFF after selectable duration
• Fan function with delayed ON and selectable run-on time
• Save and retrieve 4 light scenes with the press of a button (one light scene per button)
• Window handle and window contact, visualization also parallel to the switching outputs
• Motion detector and light sensor
• For each learned maximum of 32 transmitters, a function can be individually assigned.
• Independent of the set functions, integrated repeater functions (1-level/2-level) can be activated depending on the project.
• When learning, for example, window contacts, window handles, and motion detectors, these are already assigned to the corresponding function/parameter.

Technical data:
Power consumption: < 0.5 W (bistable relay)
Transmission frequency: 868.3 MHz
Power supply: 100-240 V~/50-60 Hz
Neutral wire: required
Ambient temperature: -20 °C to +40 °C
Storage temperature: -40 °C to +85 °C
Connection wires: 1.5 mm² blue, black, brown
Housing height: 28 mm
Housing: with screw hook hole
Protection class: IP 20
Approvals: CE, KEMA/KEUR
Load types 230 V~ (110 V~)
Incandescent lamps 2500 W (1250 W)
HV halogen lamps 1200 W (600 W)
Motor load 600 VA (300 VA)
Electronic ballast load 3 pieces (3 pieces)

The number depends on type and manufacturer. The device's data sheet must be observed!.
