Product details
Supply voltage = 12 V dc
AC or DC operation = DC
Power consumption = 21.6W
Current max = 1.8A
Air flow rate = 310m³/h
noise level = 65dB
fan speed = 6000rpm
Bearing type = Ball
Signal output = tachometer

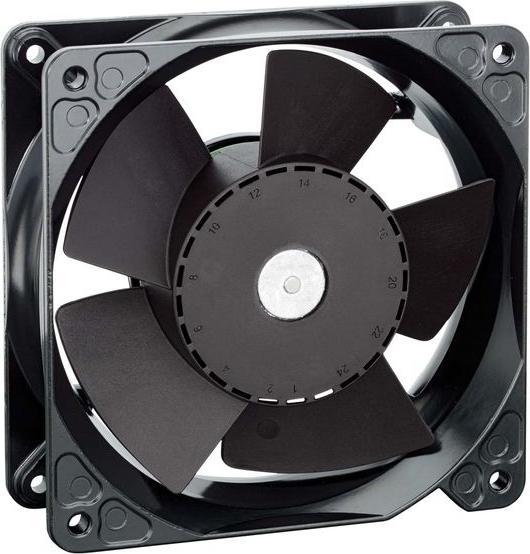

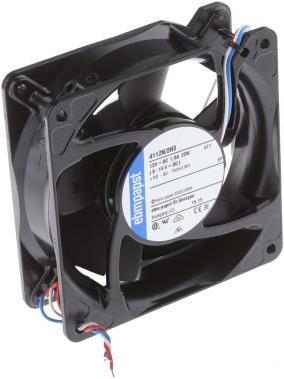

DC compact axial fan. DC fan with external rotor motor with electronic commutation. Electronic protection against reverse polarity, blocking and overload by PTC resistor; partial impedance protection. Impeller made of glass fiber reinforced plastic: PA. Housing with ground terminal, M4 x 8 screws. External connection via wires 22 AWG TR64 with stripped and tinned ends.
Fan dimension | 119 mm |
power connector | 3-pin |
Airflow | 310 m³/h |
Max. noise level | 64 dB |
Item number | 10250063 |
Manufacturer | Papst |
Category | PC fans |
Manufacturer no. | 4112N/2H3 |
Release date | 18.12.2018 |
External links |
Fan dimension | 119 mm |
Max. Speed | 6000 RPM |
Max. noise level | 64 dB |
Airflow | 310 m³/h |
Bearing type | Double ball bearing |
power connector | 3-pin |
Power consumption (active) | 21.60 W |
input voltage | 12 V |
CO₂-Emission | |
Climate contribution |
Length | 120 mm |
Width | 120 mm |
Height | 38 mm |
