Product details
These fans not only impress with their extreme quiet operation thanks to the Sintea sliding bearing, but also with a very good airflow and an extremely long lifespan. The low power requirements allow the fans to start even at low voltages, such as 5V or 7V, thus exceeding the demands of silent systems. The motor is shielded and does not cause any electronic interference in the system. Additionally, the fan offers tachometer signal transmission, allowing the speed to be read or connected to an alarm function.
Technical details:
Dimensions: 70x70x15mm
Voltage: 12VDC
Voltage range: 8 - 13.8 VDC
Airflow: 28m³/h
Speed: 3300 RPM
Power consumption: 0.6W
Sound pressure level: 25 dB(A)
Sound power level: 4.7 Bel
Lifespan L10 at 20 °C: 60,000h
Lifespan L10 at 60 °C: 30,000h
Weight: 0.053kg
Material of fan blade: fiberglass reinforced plastic PA
Material of housing: fiberglass reinforced plastic PBT
Included in delivery:

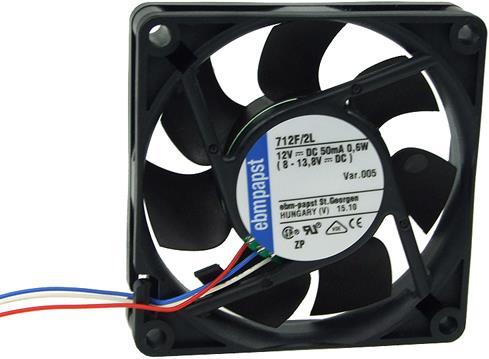

1x Papst 712 F/2L (70x70x15mm) with 3-pin Molex connector.
