Panorama Antennas 4X4 MiMo Omni-directional
8 items in stock at supplier
Product details

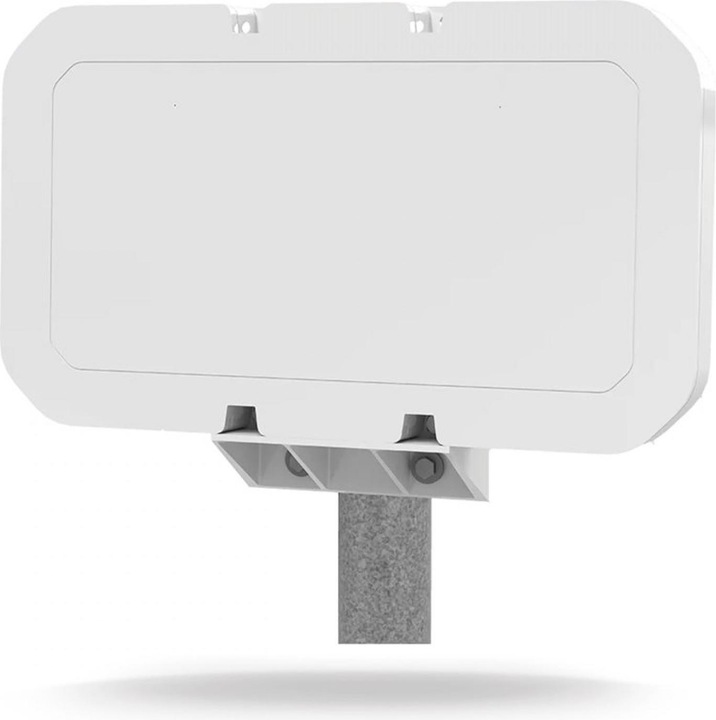

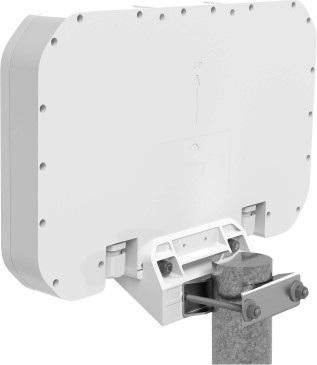

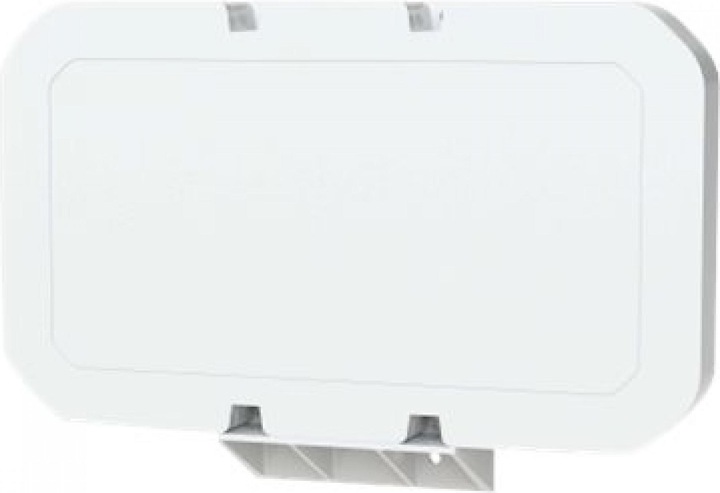

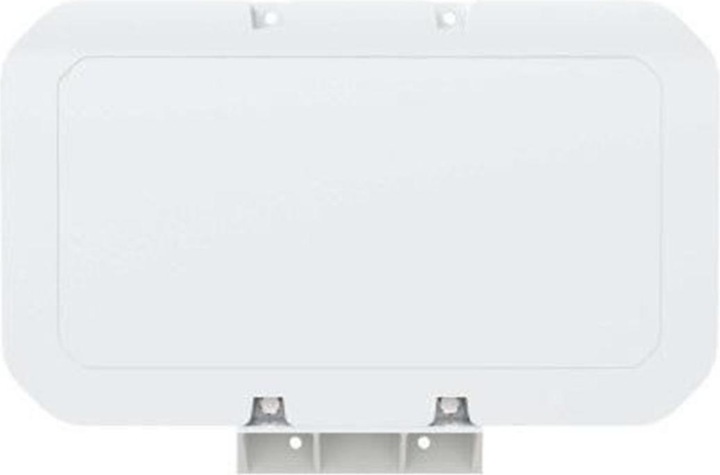

The DWMM4[G]-6-60 antenna provides a 4x4 MIMO solution for global 4G/5G networks from 617-6000 MHz. Incorporating four separately fed ultra wideband elements in a single housing, the DWMM4[G] is suitable for a wide range of fixed site and failover applications. The supplied mounting bracket enables simple wall mounting using the included screws and wall plugs, as well as mast mounting with the provided clamps.

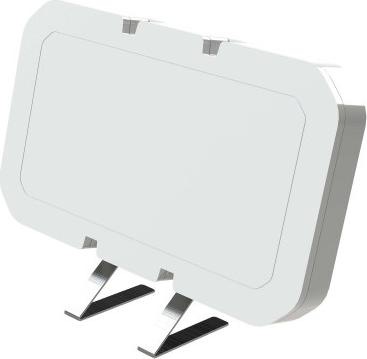

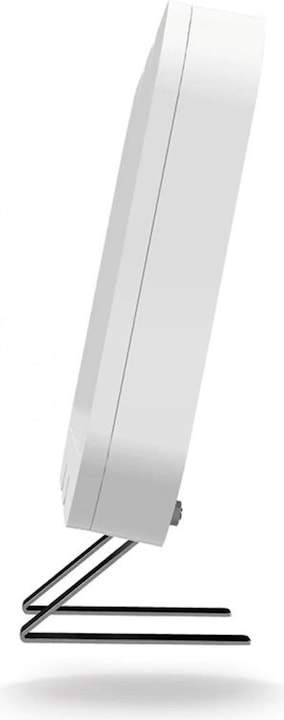

The antenna can also be mounted with screws directly to non-conductive panels or internal walls, or placed on a desk using the included mounting feet. The omnidirectional radiation pattern allows for easy placement of the antenna without requiring directional alignment. The DWMM4G type is equipped with an integrated GPS/GNSS module with 26 dB LNA gain and advanced filtering to combat noise.
The antenna features an integrated flame retardant CS32 cable (FR CS29 for GPS/GNSS), which minimizes exposed connector joints and simplifies cable management for easy installation.
Antenna type | Mobile radio antenna |
Antenna connection | SMA |
Cable length | 0.50 m |
Application range | Indoor, Outdoor |
Protection type (IP code) | IP66 |
Operating temperature | -40 - 85 °C |
Item number | 46931216 |
Manufacturer | Panorama Antennas |
Category | Network antenna |
Manufacturer no. | DWMM4-6-60-5SP |
Release date | 28.6.2024 |
Antenna type | Mobile radio antenna |
Antenna gain | 7 dBi |
Antenna connection | SMA |
Cable length | 0.50 m |
Application range | Indoor, Outdoor |
Mounting type | Wall-mounted |
Protection type (IP code) | IP66 |
Operating temperature | -40 - 85 °C |
CO₂-Emission | |
Climate contribution |
Length | 0.04 m |
Width | 0.37 m |
Height | 0.22 m |
