Orbis OB94U720HA2 Wallbox Viaris UNI TP 22 KW 3x32 A
Type 2, 22 kW, 32 AFree shipping starting at 50.–

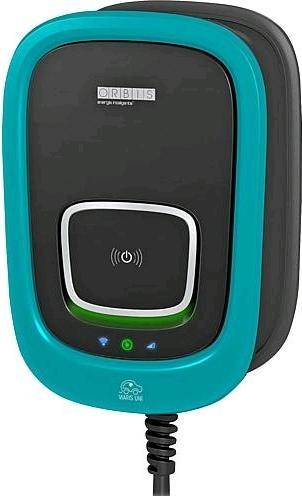

Orbis charging station Viaris UNI TP

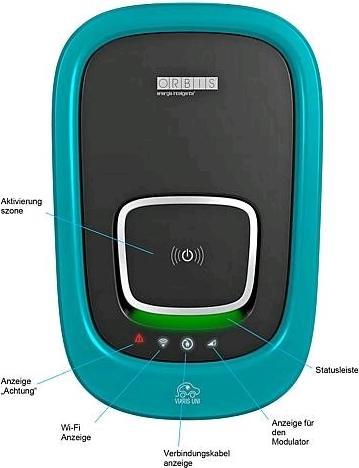

This charging station is designed for installation in private areas, providing efficient charging of electric vehicles both indoors and outdoors. It features wall mounting, a permanently integrated 5m charging cable with type 2 coupling, DC residual current detection, and requires a type A residual current circuit breaker in pre-installation. The rated voltage is 400V, with operating and charging monitoring according to IEC 61851-1. Activation can be done by touch or RFID, and it includes an LED status display, as well as an Ethernet adapter for LAN connection. The temperature range is from -30°C to +50°C, and it has a protection class of IP54. Connection technology complies with IEC 62196-2 and comes with installation instructions and an installation set.
Charging power is a maximum of 22kW, with a maximum charging current of 32A and a rated current of 32A. The back-up fuse is 32A, and the mains connection can handle a maximum of 5x6mm².
Technical data
EAN: 8426709118389
Product group: eMobility
Manufacturer: Orbis Schaltungstechnik
Supplier article number: OB94U720HA2
Dimensions: 332 x 224 x 105 mm
Type: UNI TP 22kW.
Product category | Charging station / Wallbox |
Cable length | 5 m |
Item number | 22731077 |
Manufacturer | Orbis |
Category | EV chargers |
Manufacturer no. | 135265 |
Release date | 19.10.2022 |
Product category | Charging station / Wallbox |
Vehicle connection type | Type 2 |
Charging power | 22 kW |
Electric current | 32 A |
Cable length | 5 m |
access protection | RFID-blocking |
Interfaces / communication module | Ethernet |
Additional properties | LED indication, Residual current protection |
Protective device | RCD type A |
Protection type (IP code) | IP54 |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Assembly instructions and assembly kit |
Width | 22.40 cm |
Depth | 33.20 cm |
Height | 10.50 cm |
