Omron Industrial Automation Temperature controller 1/16 DIN 24Vac/dc

Output type: Relay
Supply voltage: 24 Vac/dc
Size: 48 x 48 mm
Number of outputs: 1
Minimum operating temperature: -10 °C
Maximum operating temperature: +55 °C
Panel depth: 60 mm

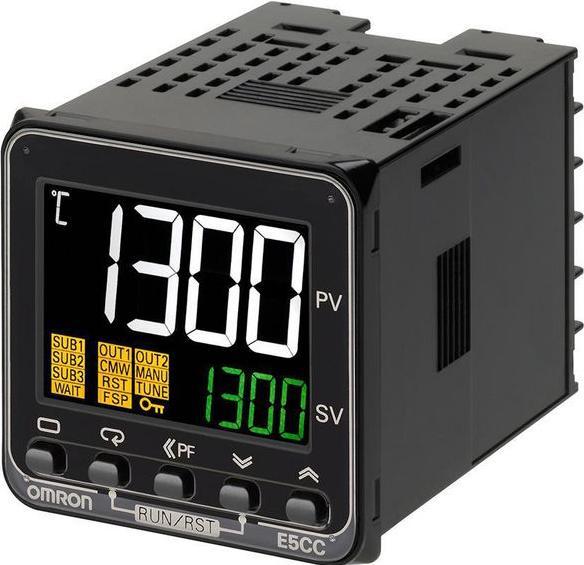

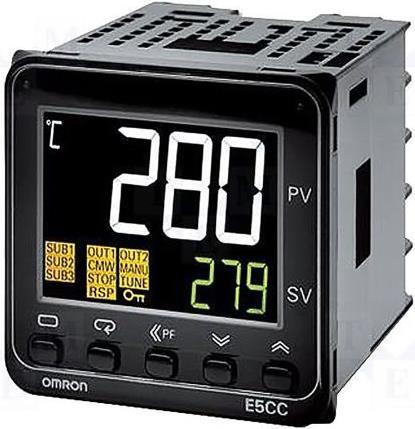

CE. Digital temperature controller E5CC. The E5CC series temperature controllers from Omron are high-quality PID-based controllers that support a wide range of applications. There is a comprehensive selection of sensor inputs, including a universal input, thermocouple, PT, as well as analog current and voltage inputs. The E5CC series temperature controllers offer various configurations tailored precisely to your programming and application requirements, enabling a reliable and user-friendly system. The compact 48 x 48 mm unit of the controller is an industry standard and fits into most typical system units for quick and effortless installation. The large white PV display of the E5CC, with its 15.2 mm LED characters, ensures better visibility in any application. The PID control in the E5CC range can be set for separate control of heating and cooling processes. This functionality allows for programming to control different systems with application-specific response behavior. The automatic adjustment of the PID control functions enables quick and easy configuration of the initial parameters for smooth and rapid installation and commissioning. The E5CC series also features standard on/off control for simpler applications.

Features and benefits:

• Large, clear LCD display with 15.2 mm characters
• Dual PV/SV 4-digit display
• High-speed sampling, 50 ms
• Short 60 mm housing
• Easy connection to PLC with communication that requires no programming
• Communication port can be used to connect temperature controllers together
• Simple setup with CX-Thermo software (Windows XP, 7) without additional power supply via USB adapter cable.
