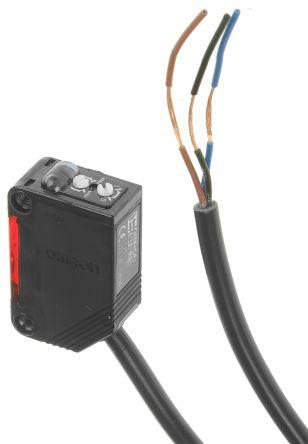

Omron Industrial Automation E3Z pre-wired retro min sensor,PNP 4m

Sensor Type = Cubic
Operating mode = Retroreflective
Detection range = 100 mm → 4 m
Output type = PNP
Connection = Pre-wired cable
DC voltage max = 26.4V
Optical technology = Phototransistor
Light source = LED
Protection class = IP69K
Current max. = 100 mA
response time = 1 ms
Housing material = PBT
Operating temperature max. = +55°C

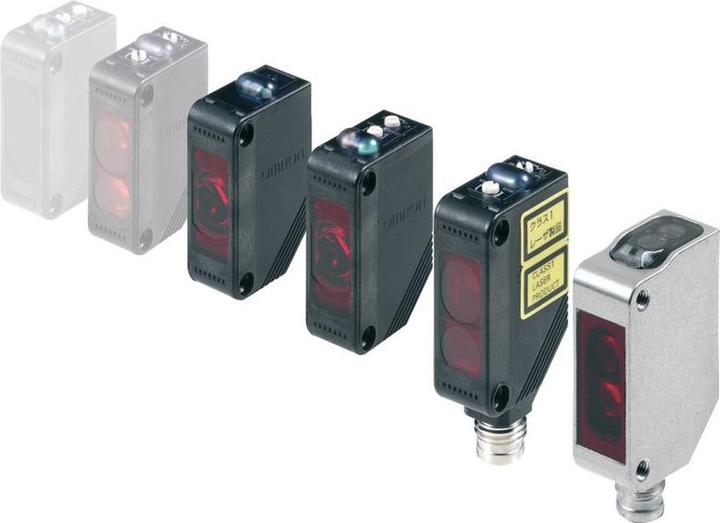

Suitable reflector see order no. ; 171-3779 171-3779 (3M series). Miniature high performance sensors E3Z. Photoelectric sensors, transmitted beam (IR LED), reflective (visible red LED) and diffuse scattering (IR LED). PBT housing IP67 with methacrylate lens PNP and NPN output configurations ON at light or dark selectable Small deadband range for detection of near targets Retroreflective versions with polarized light source for detection of shiny objects Short-circuit and reverse polarity protection Protection against mutual interference (reflective and diffuse versions only) Operating temperature range: -25 → +55 °C.
