OEM Stepper Motor Hat for Raspberry Pi

Currently out of stock
Free shipping starting at 50.–

Product details

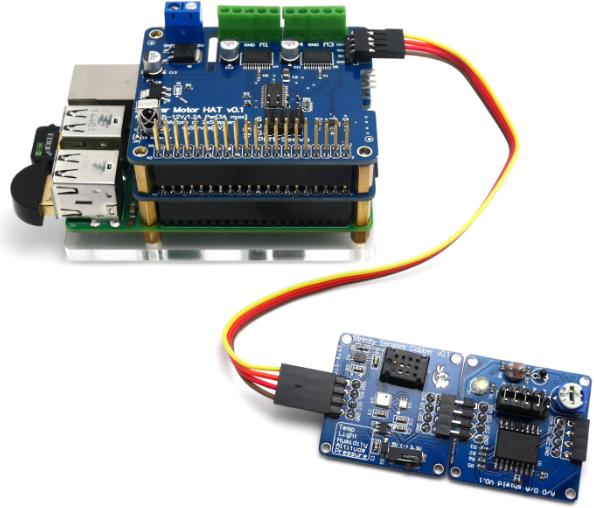

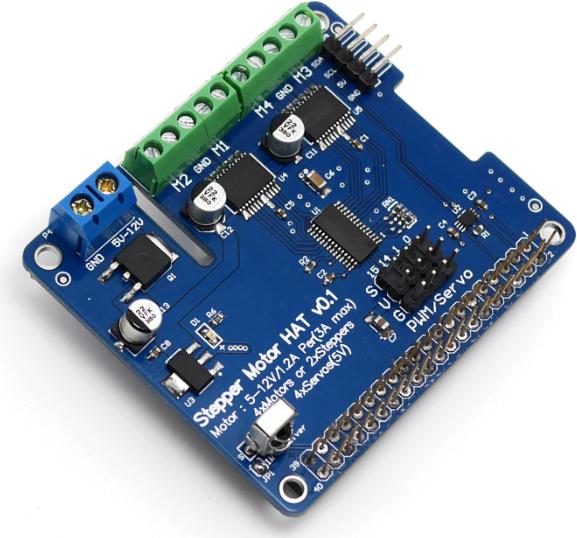

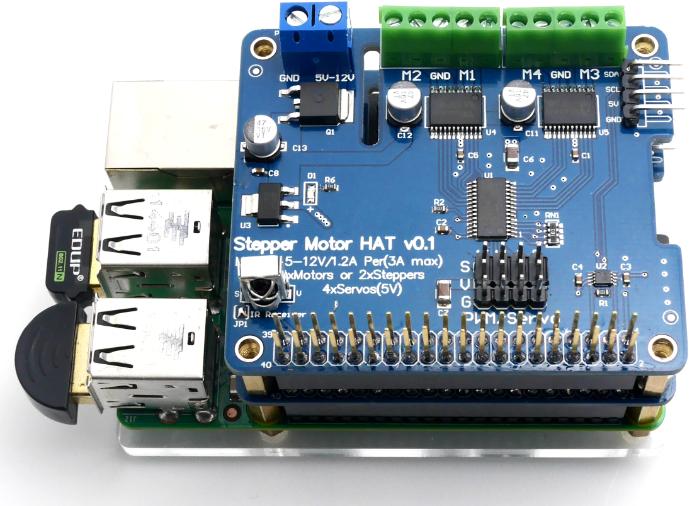

Stepper motor hat for Raspberry Pi with 4 H-bridges (for 4 DC motors or 2 steppers) and 4 12-bit PWM channels.

Ready assembled - just put it on the Raspberry.

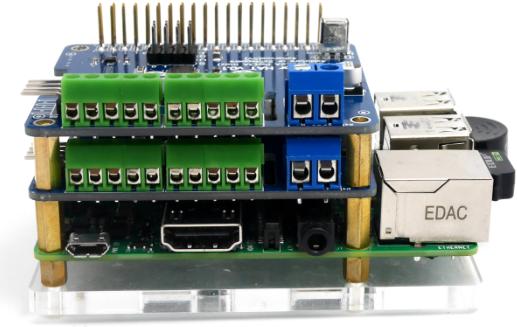

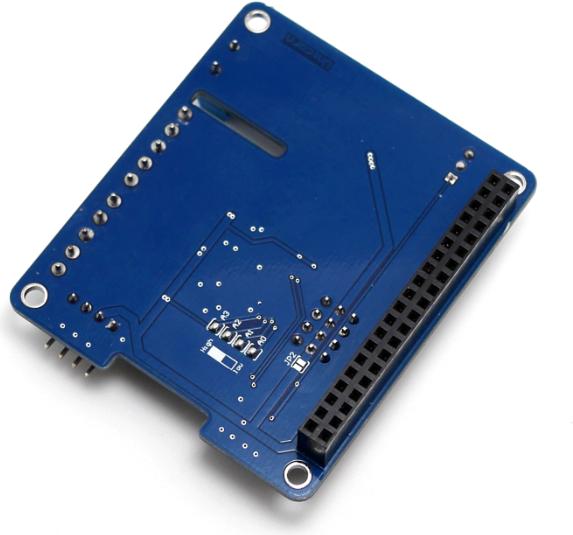

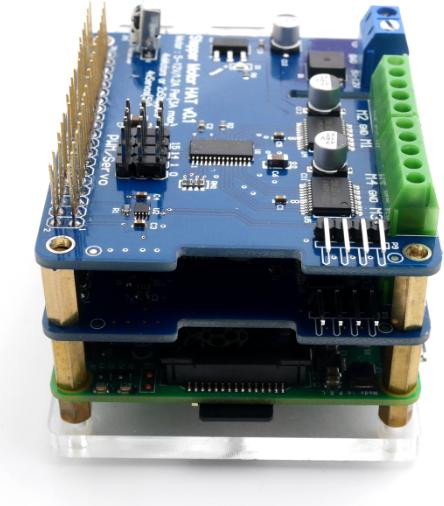

Up to 16 of these shields can be stacked on a Raspberry. The address selection is done by 4 solder bridges on the bottom side of the board.

Features:

  • 4 H-bridges with 1.2 A per bridge with 3 A peak, with thermal shutdown protection and protection diodes. For motors from 5V to 12V.

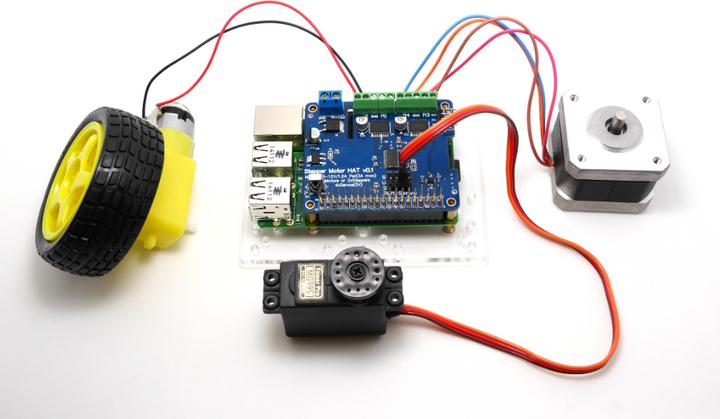

  • For up to 4 DC motors, 256 speeds can be programmed.
  • For up to 2 stepper motors (uni- and bipolar) with 4 stepper modes (single coil, double coil, interleaved, and micro-stepping).
  • 4 connections for up to 4 servo motors at 5V.
  • Infrared receiver on GPIO26.
  • Large terminal blocks for connection cables (18-26 AWG).
  • Reverse polarity protected 2-pin terminal block for external power supply (5V to 12V).
  • Compatible with all 40-pin GPIO Raspberry models: A+, Pi Model B+, Pi 2, Pi 3.

Key specifications

Item number
5998492

General information

Manufacturer
OEM
Category
Diode
Manufacturer no.
P00001339
Release date
22.11.2016

Voluntary climate contribution

CO₂-Emission
Climate contribution

Package dimensions

Length
6.60 cm
Width
5.60 cm
Height
2 cm
Weight
30 g
