OEM Pressure dependent resistor (FSR) Round
Delivered between Wed, 2.7. and Thu, 3.7.
8 items in stock at supplier
8 items in stock at supplier
Free shipping starting at 50.–
Product details

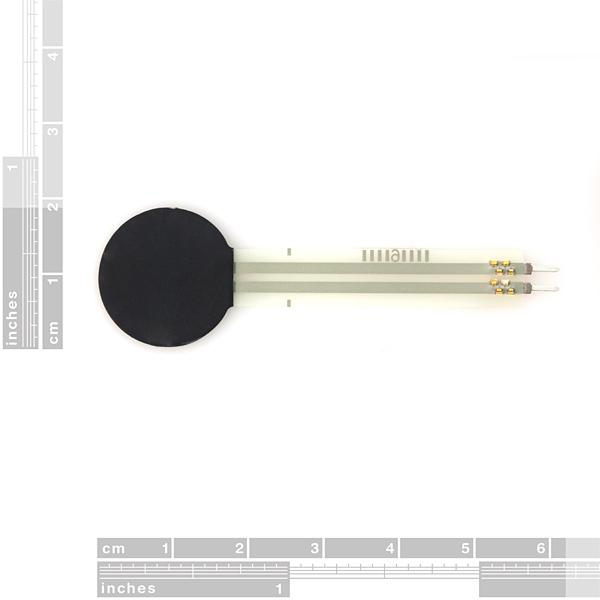

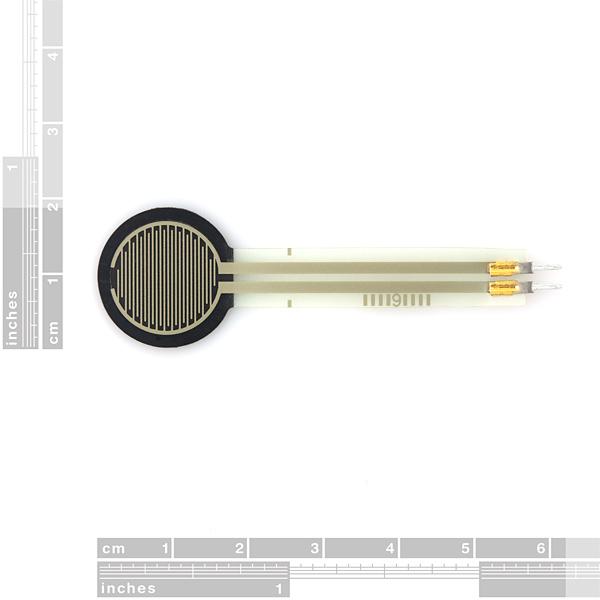

This is a force-sensitive resistor (FSR) with a pressure-sensitive area of 1.27 cm in diameter. The harder you press on the pad, the lower the resistance. Without pressure, the resistance is more than 1 mOhm. The sensor can register forces from approximately 100 g to 10 kg.
The two pins are spaced 2.54 cm apart, allowing the sensor to be used directly with breadboards.
This sensor is very easy to use, but it is not incredibly accurate. Therefore, it is less suitable as a scale, but especially in playful applications, the possibilities are nearly limitless!
Size:
- Total length: 6 cm
- Pad diameter: 1.9 cm
- Sensor size: 1.27 cm (diameter).
Item number | 5998180 |
Resistor type | Resistor network |
CO₂-Emission | |
Climate contribution |
Length | 0.06 m |
Length | 10 cm |
Width | 6 cm |
Height | 0.20 cm |
Weight | 10 g |
