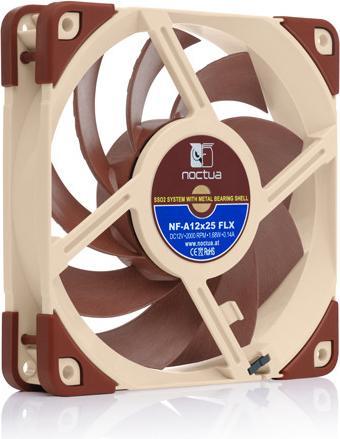

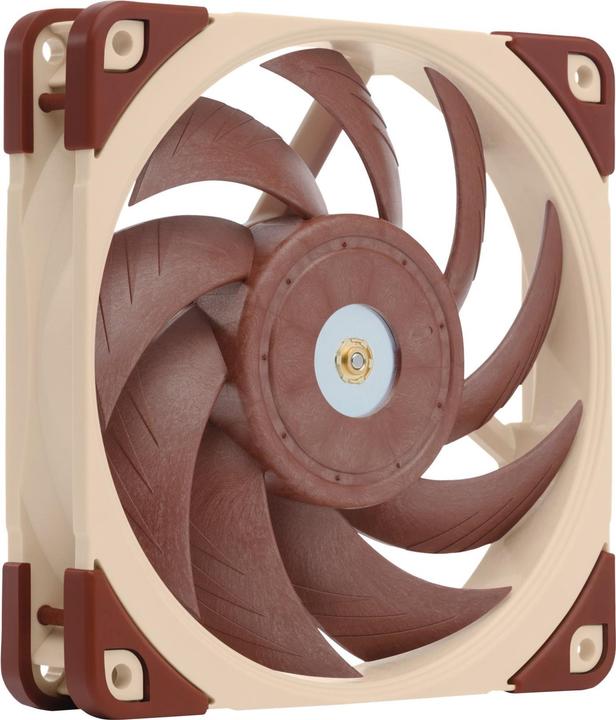

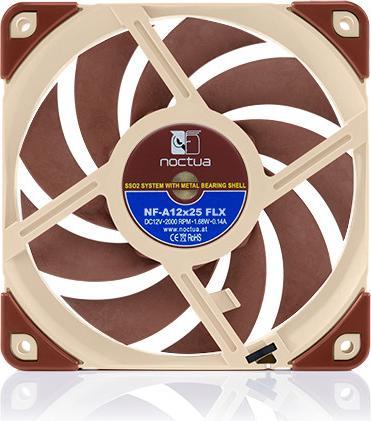

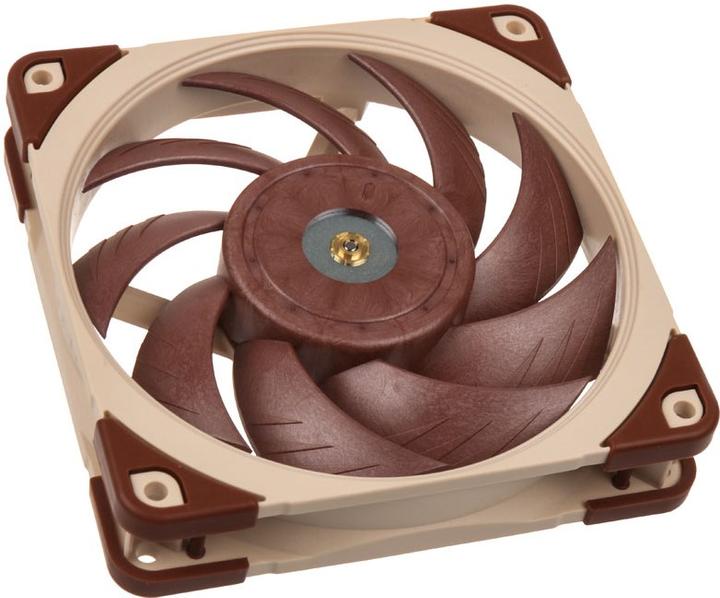

Noctua NF-A12x25 FLX fan

120 mm, 1 x
Delivered between Sat, 24.5. and Fri, 30.5.
More than 10 items in stock at supplier

Product details

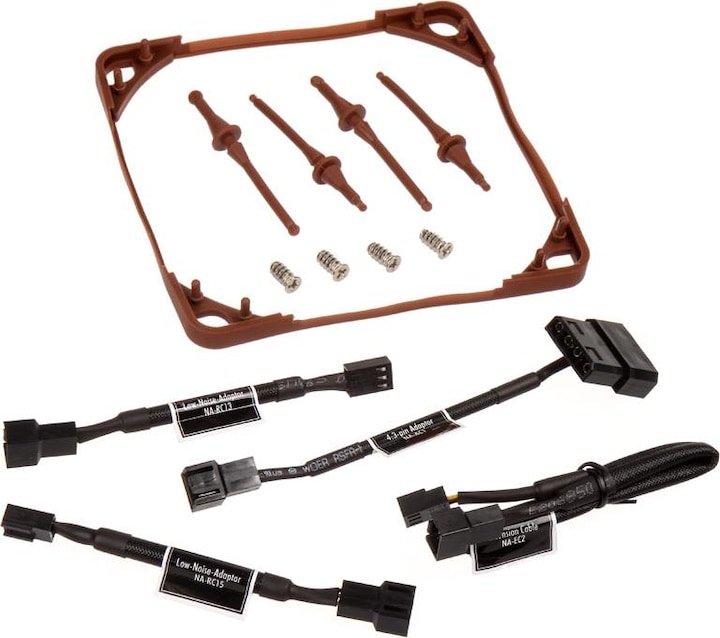

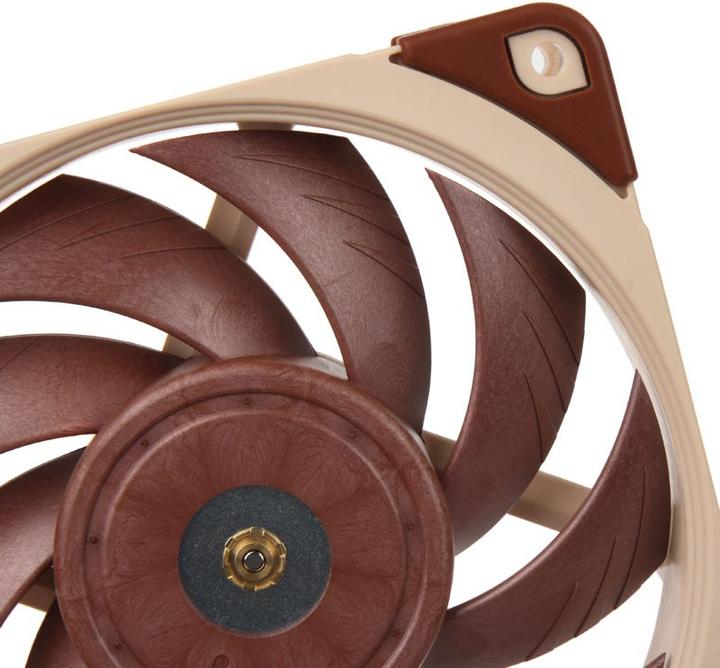

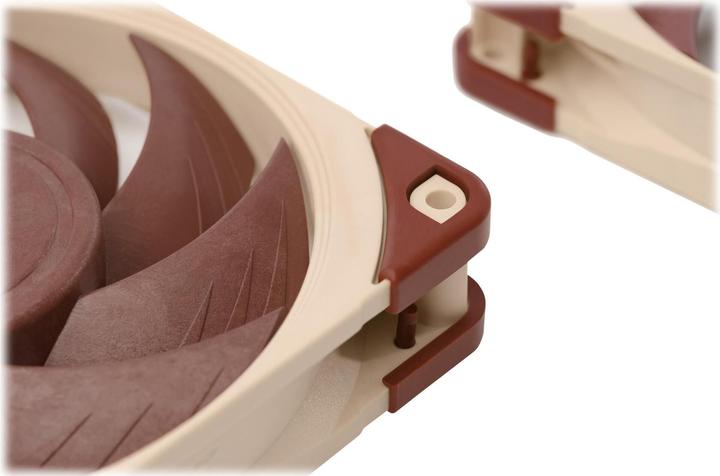

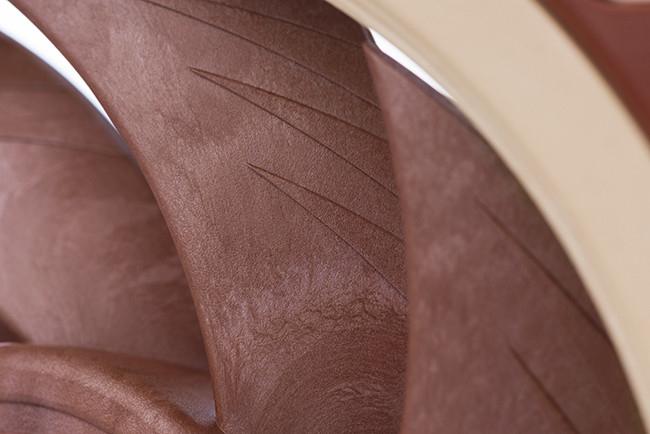

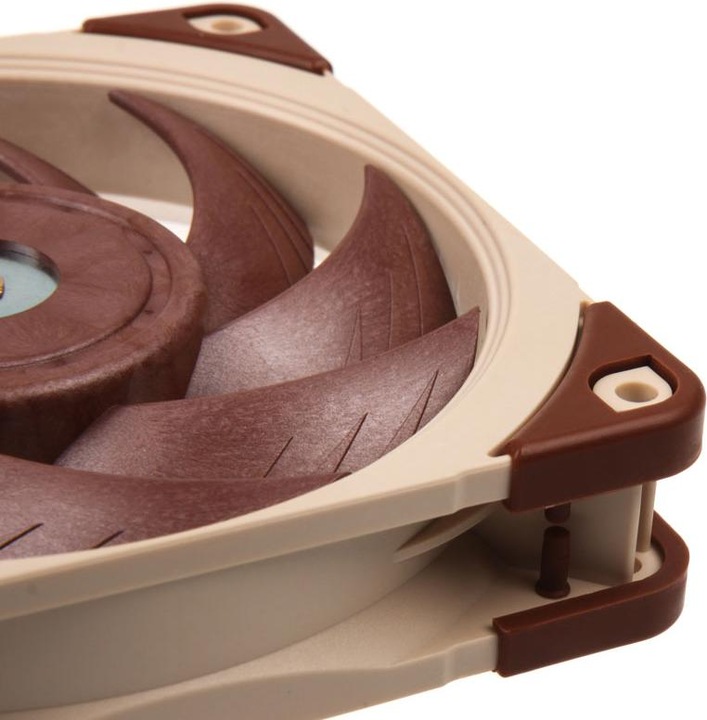

The NF-A12x25 is a highly optimized 120 mm fan of the next generation, setting new benchmarks in silent cooling performance thanks to innovative aerodynamic design measures. It combines pioneering Noctua technologies such as the Advanced Acoustic Optimization frame and Flow Acceleration Channels with an unprecedentedly tight rotor gap of just 0.5 mm. The manufacturing precision required for this is ensured by the use of the new Sterrox liquid crystal polymer and metal reinforcements at the hub and shaft mount. In line with Noctua's A-series concept, the NF-A12x25 is a true all-rounder, delivering excellent results in all application areas—whether for performance-oriented applications with low static pressure like case ventilation or pressure-oriented scenarios with high airflow resistance such as use on coolers and water cooling radiators. The 3-Pin FLX version offers three speed settings (2000/1700/1350 rpm) via the included low-noise adapters, providing full flexibility between maximum cooling performance and near-silent operation. Its superior efficiency, forward-thinking design, and uncompromising material choice make the NF-A12x25 a true premium product for the highest demands.

Key specifications

Fan dimension
120 mm
Items per sales unit
1 x
power connector
3-pin
Airflow
102 m³/h
Max. noise level
22.60 dB
LED colour
without LED
Item number
12832078

General information

Manufacturer
Noctua
Category
PC fans
Manufacturer no.
NF-A12x25 FLX
Release date
3.3.2020

Colour

Colour
Brown
Exact colour description
Brown

Fan properties

Fan dimension
120 mm
PC fan type
PWM fan
Fan type
Standard
Max. Speed
2000 RPM
Max. noise level
22.60 dB
Airflow
102 m³/h
Static pressure
2.34 mmH20
LED colour
without LED

Connections

power connector
3-pin

Power supply

Power consumption (active)
1.68 W
input voltage
12 V
Cable length
0.30 m
Electric current
0.14 A

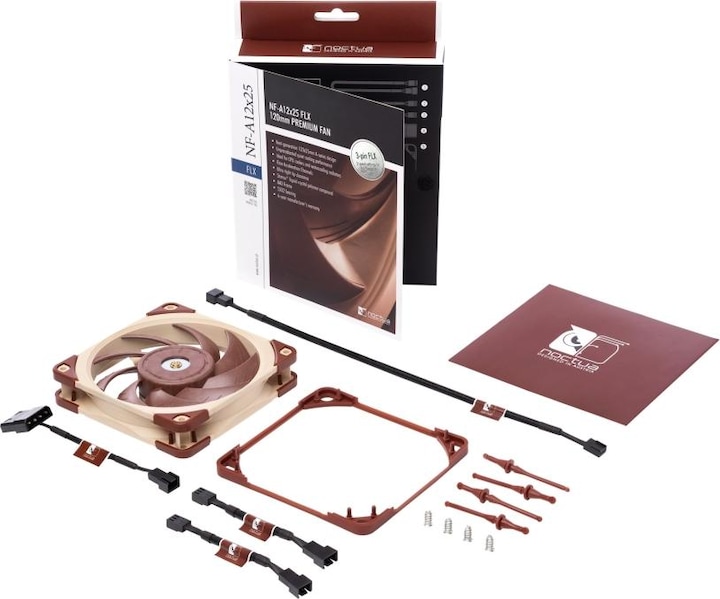

Scope of delivery

Items per sales unit
1 x
Scope of delivery

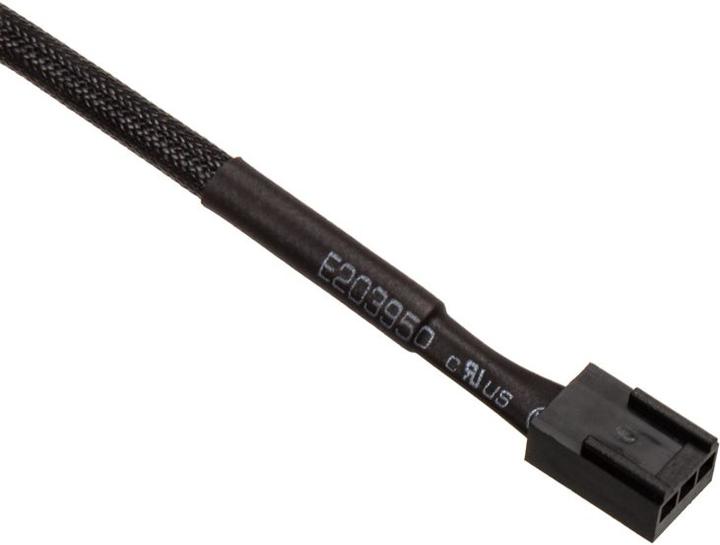

Cables supplied: FanFan

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
250 mm
Width
120 mm
Height
120 mm
Weight
355 g

Package dimensions

Length
21.20 cm
Width
15.20 cm
Height
3.40 cm
Weight
362 g

30-day right of return
6 years Warranty (Bring-in)
