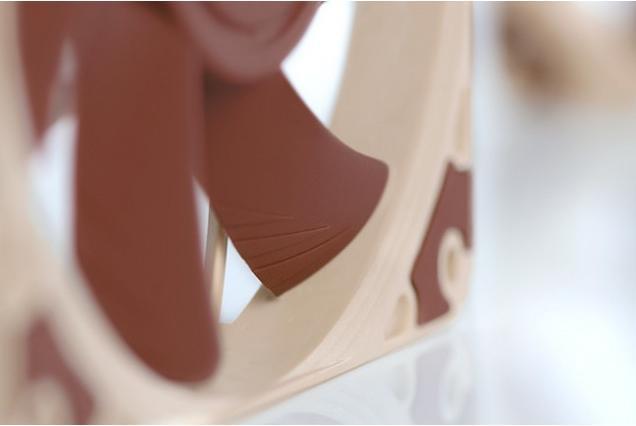

The NF-A12x15 is a fan that utilizes innovative aerodynamic design features such as Flow Acceleration Channels and Noctua's AAO frame system. With a slim depth of only 15 mm, the NF-A12x15 is perfect for applications with limited space, such as low-profile CPU coolers or HTPC cases. The PWM version uses Noctua's specially designed NE-FD1 IC for fully automatic speed control via 4-pin connectors and comes with a low-noise adapter that reduces the maximum speed in PWM mode from 1850 to 1400 rpm. Its excellent running smoothness, the SSO2 reference-class bearing, and Noctua's proven premium quality make the NF-A12x15 PWM an exceptional choice for the highest demands.
Fan dimension | 120 mm |
Items per sales unit | 1 x |
power connector | 4-pin PWM |
input voltage | 12 V |
Airflow | 94.20 m³/h |
Max. noise level | 23.90 dB |
LED colour | without LED |
Item number | 6399988 |
Manufacturer | Noctua |
Category | PC fans |
Manufacturer no. | NF-A12x15 PWM |
Release date | 9.10.2017 |
Sales rank in Category PC fans | 296 of 2314 |
External links |
Colour | Beige, Brown |
Exact colour description | Beige, Brown |
Fan dimension | 120 mm |
PC fan type | PWM fan |
Fan type | Standard |
Max. Speed | 1850 RPM |
Max. noise level | 23.90 dB |
Airflow | 94.20 m³/h |
Static pressure | 1.53 mmH20 |
LED colour | without LED |
Fan mounting | Screws |
Fan bearing type | SSO2 |
Speed regulation | Fan control |
power connector | 4-pin PWM |
Power consumption (active) | 1.56 W |
input voltage | 12 V |
Cable length | 0.30 m |
Electric current | 0.13 A |
Items per sales unit | 1 x |
Scope of delivery | Screws, Y-split cable |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Length | 120 mm |
Width | 120 mm |
Height | 15 mm |
Weight | 260 g |
Length | 21.20 cm |
Width | 15.50 cm |
Height | 3.90 cm |
Weight | 284 g |
