Niedax WHAS 105 S wide span spar connection st. Height 105mm steel

Niedax Wide Span Beam Connection Piece WHAS 105 S

Manufacturer: Niedax
Description: Wide Span Beam Connection Piece
Height: 105 mm
Type: WHAS 105 S
Design of the side beam: Profile (open)
Suitable for beam height: 105 mm
Wide span version: yes
Suitable for function maintenance: no
Material: Steel
Stainless steel, pickled: no
Material quality: other
Surface protection: strip galvanized

Niedax Wide Span Beam Connection Piece WHAS 105 S: further details
Wide span beam connection piece, right-angled, one-sided form-fitting for the wide span tray beam, for connecting a vertical wide span tray (riser tray) to a horizontally running wide span gutter/ladder with the same beam height, as well as for securing the wide span trays to the floor and wall, including hot-dip galvanized partial fastening accessories. The connection piece serves as a displacement protection and requires a support point close to the wall for wall connections. To ensure a smooth installation of the protective cap pair, the vertical wide span cable ladder should have a beam overhang above the horizontally running wide span tray beam of at least 70 mm. In areas of personal hazard, the protective cap pair SKWHM 105 should be arranged. Potential equalization occurs through the bolting with the wide span cable gutters/ladders.

Usable for: Wide span cable gutters/ladders with a 105 mm edge height
Requirement: 2 pieces per connection

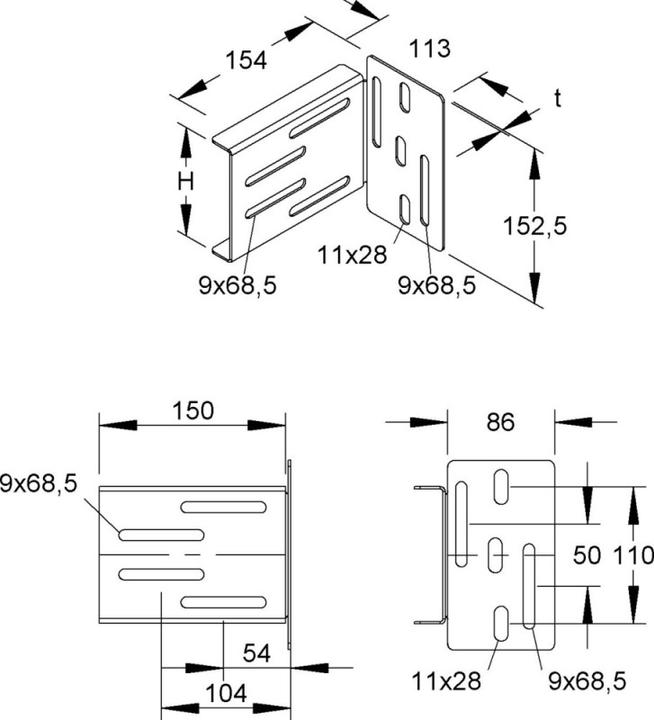

Dimensions (approx. dimensions) form-fitting side height H (clear internal dimension): 106.5 mm
Material thickness t: 2 mm
Material: Steel, strip galvanized according to DIN EN 10346
EAN: 4013339210657.
