Niedax Round arch

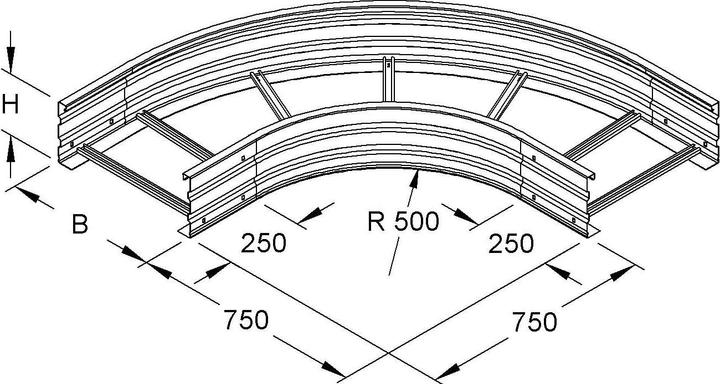

90° bend, with beaded, round and unperforated side rails, with connector perforation for the connection, for wide-span cable ladders, dimensionally stable thanks to riveted, upwardly open C-profile rungs with 16 mm slot width, for creating horizontal 90° outlets. Please order butt joint connectors WSV 200.500/WSVSN 200.500 separately. The moulded piece radii are designed so that the cables can be laid in accordance with DIN/VDE 0298 Part 3. Suitable clamps (B... and BK...) can be found in the KI catalogue. Joints must be supported in the immediate vicinity by an appropriate support structure. Suitable for : Wide span cable ladder WSL 200... Wide span cable ladder WSLSN 200... Dimensions (approx. dimensions) Height H x width W : 200 x 500 mm External dimensions : 750 mm + W Internal spar radius R : 500 mm Material : Steel, strip galvanised to DIN EN 10346.
