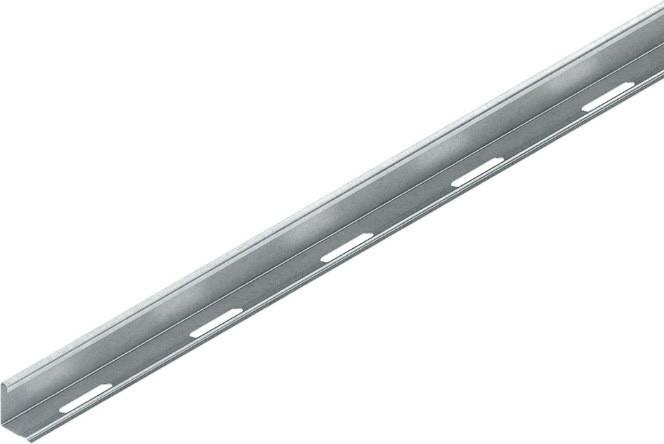

Niedax NIE RW35F divider 30x3000mm T0,75mm hot-dip galvanised.

Niedax Divider RW 35 F

Manufacturer: Niedax
Description: Divider for grid trays
Type: RW 35 F
Divider height: 30 mm
Length: 3000 mm
Design: L-profile
Mounting holes: yes
Mounting type: screwable
Suitable for grid tray: yes
Suitable for cable ladder: yes
Suitable for cable tray: yes
Suitable for function maintenance: yes
Material: Steel
Stainless steel, pickled: no
Material quality: other
Surface protection: hot-dip galvanized
Operating temperature: -20..120 °C

Niedax Divider RW 35 F: additional details
Divider with edge protection, perforated bottom edge for screw fastening and continuously profiled for fitting into base or holding brackets, for separating cables and lines with different voltages and functions. The potential equalization occurs automatically when clipping or screwing in, including hot-dip galvanized partial mounting accessories. VDE certified! Please observe additional regulations for use in function maintenance!

Usage for:

• Grid trays
• Cable trays/ladders
• Wide-span trays/ladders
• Divider profile holders

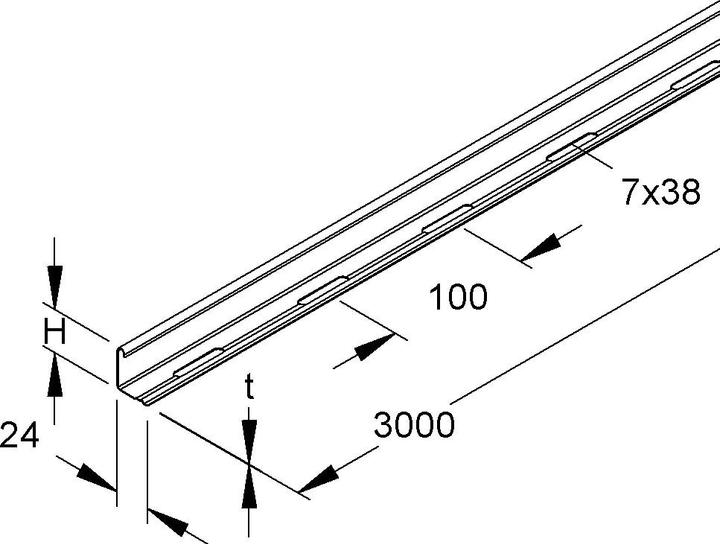

Dimensions (approx. measurements):
H x Flange: 30 x 24 mm
Material thickness t: 0.75 mm
Delivery length L: 3000 mm
Material: Steel, hot-dip galvanized according to DIN EN ISO 1461.
