Niedax GRP sheet

Niedax GRP bend 45° KKC 80.600

Manufacturer: Niedax
Designation: GRP bend 45°
Type: KKC 80.600
Change of direction: Horizontal
Angle: 45°
Design: Bend rigid
Bend design: Smooth bend
With top part: No
Inside radius: 250 mm
Cable tray height: 80 mm
Cable tray width: 600 mm
Material thickness: 5 mm
Side perforation: No
Mounting holes in the base: No
NATO hole pattern: No
Version: Integrated connector
Wide-span version: No
Suitable for functional integrity: No
Material: Plastic
Stainless steel, pickled: No
Material quality: GRP
Surface protection: Other
Colour: Grey RAL number: 7032

Niedax GRP bend 45 degree KKC 80.600: Further details include a moulded GRP bend 45° with unperforated side rails, integrated perforated connector tabs, and transverse reinforcements (5 mm) for creating 45° horizontally angled cable tray runs. Please order fixing accessories separately. The product is halogen-free. During installation, ensure that the bend is supported with brackets at each cable tray access point. If the width is greater than 400 mm, an additional centre support should be provided. To ensure proper installation, the connectors must be screwed to each cable tray access point with 2 FKM 6X16 E4 (please order separately).

Article also available in AC (resin mixture with acrylic resin).

Application for: GRP cable tray KK 80... GRP cable tray KKL 80...

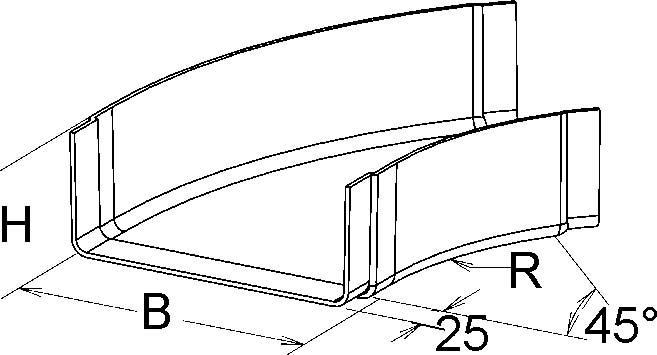

Dimensions (approx.) H x W: 80 x 595 mm

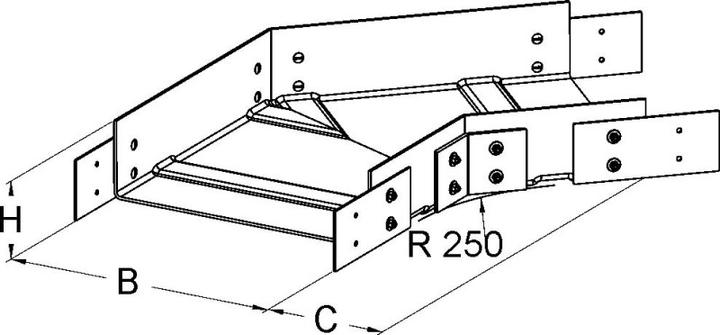

Inner rail radius R: 250 mm
Material: UP-GF (glass fibre reinforced polyester)
Colour: Pebble grey RAL: 7032 (similar)
EAN: 4013339953516.
