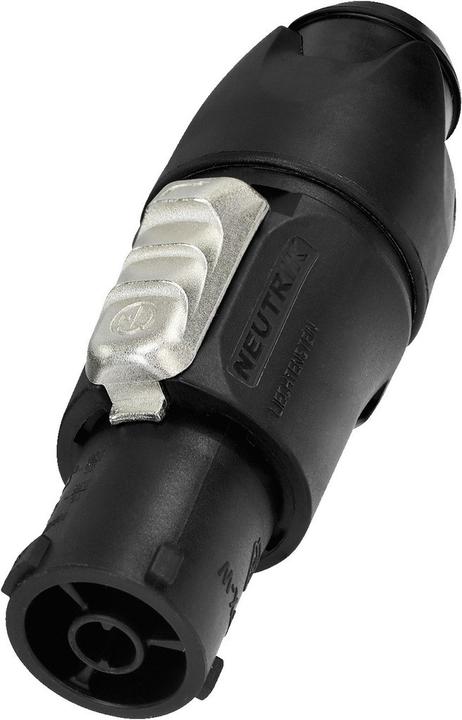

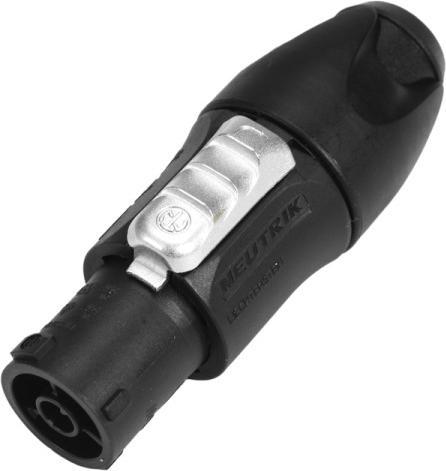

Neutrik NAC3FX-W-TOP PowerCon locking socket

4Ratings
BrandMore from Neutrik
Currently out of stock
Free shipping starting at 50.–

Product details

Accompanied by increasingly higher demands on connection systems, the highly innovative entertainment industry is constantly evolving. Connectors that are resistant to environmental influences are particularly in demand to ensure applications with high loads. The powerCON TRUE1 TOP is a locking device connector with a current carrying capacity of up to 16 A. It replaces device couplings wherever a very robust solution combined with a locking mechanism is required.

Key specifications

Cable + connector type
Plug connectors
Plug type
PowerCon
Cable length
0.13 m

General information

Item number
17522263
Manufacturer
Neutrik
Category
Cables + Plugs
Manufacturer no.
NAC3FX-W-TOP
Release date
19.11.2021

Colour

Colour
Black

Material

Material group
Plastic
Material
Bronze contacts (CuSn0.2), Contact plating 2 µm Ag, Housing Polyamide (PA 6.6 30 % GR), insert polyamide (PA 6.6 30 % GR), Locking element ZuAl4Cu1, Strain relief polyacetal (POM)

Cable + Connector Features

Cable + connector type
Plug connectors
Plug type
PowerCon
Compatible hardware
Various
Temperature
-30 - 80 °C
Max. temperature
80 °C
Min. temperature
-30 °C
mounting type
Cable installation
Cable length
0.13 m
Connectors Design
Coupling, straight
Number of cores
2x

Origin

Country of origin
China

Scope of delivery

Items per sales unit
1 pcs.
Scope of delivery
1 piece

Product dimensions

Length
12.50 cm
Width
1.80 cm
Height
20 cm
Weight
33 g

Package dimensions

Length
12.50 cm
Width
11 cm
Height
3 cm
Weight
36 g
