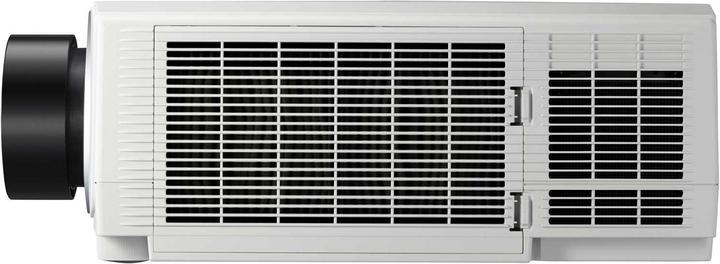

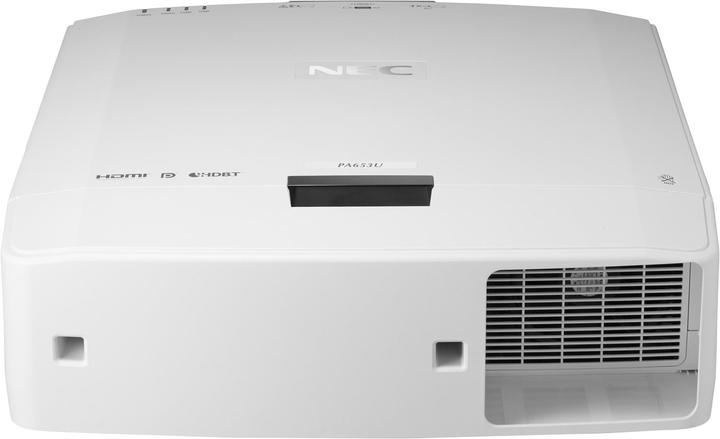

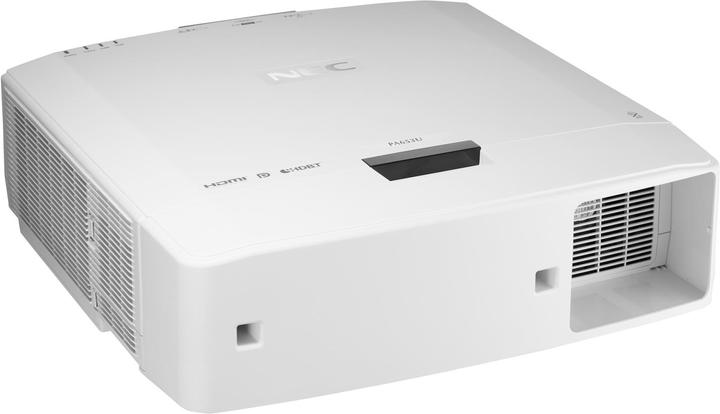

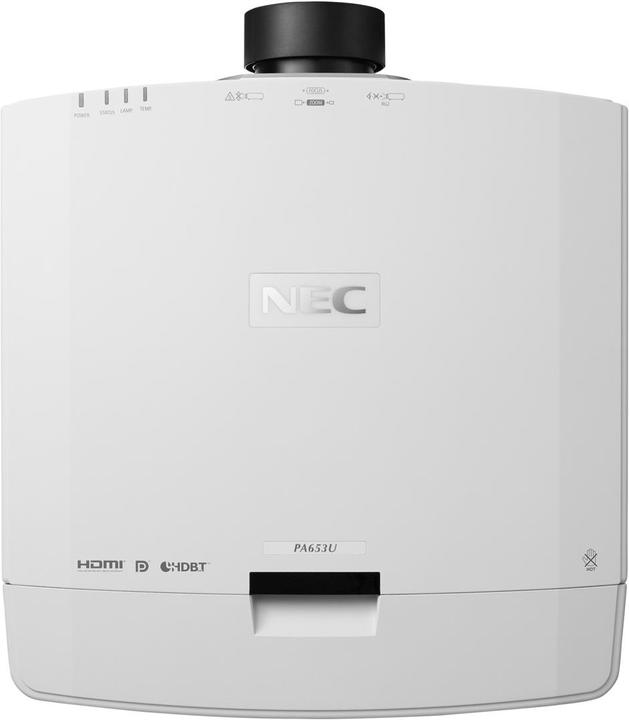

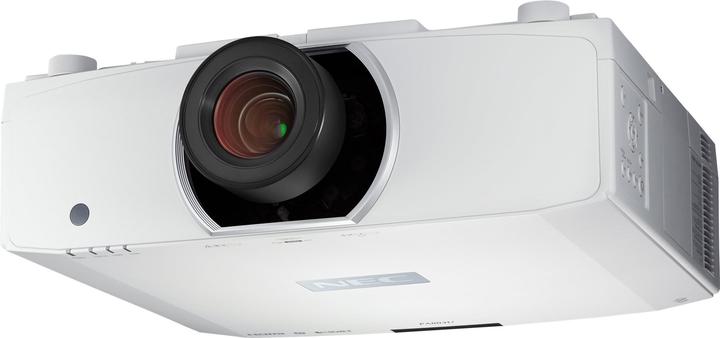

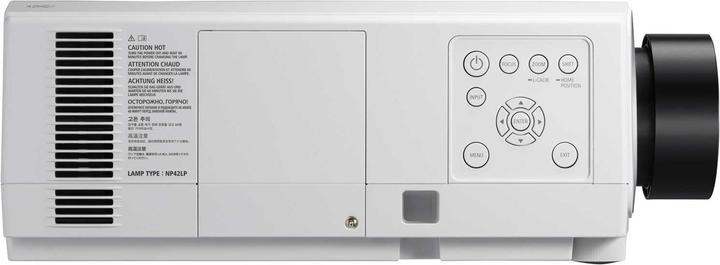

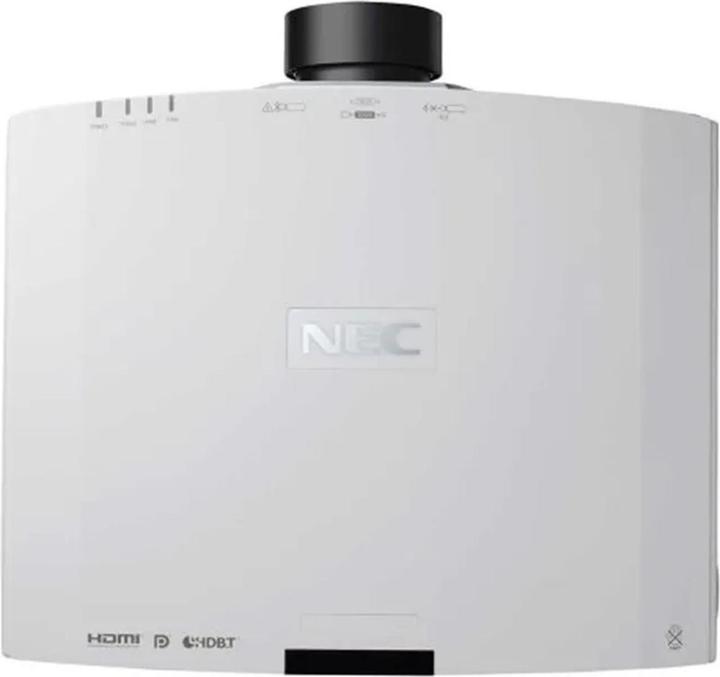

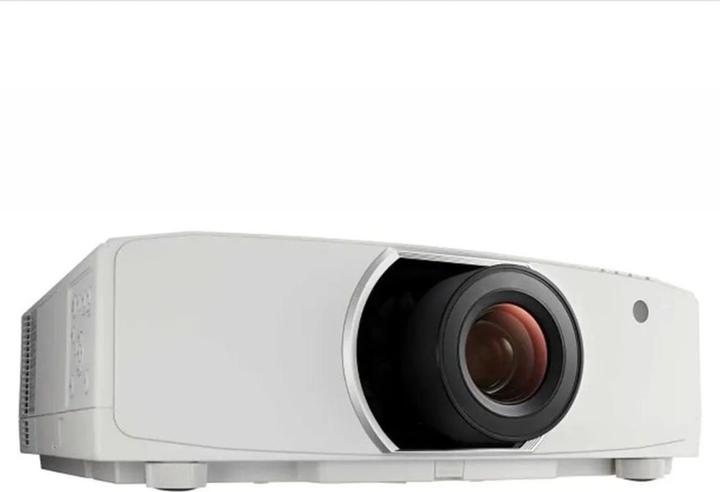

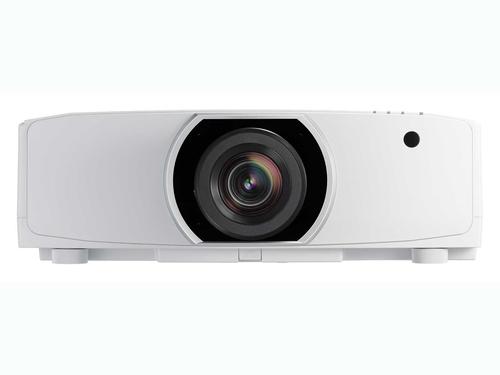

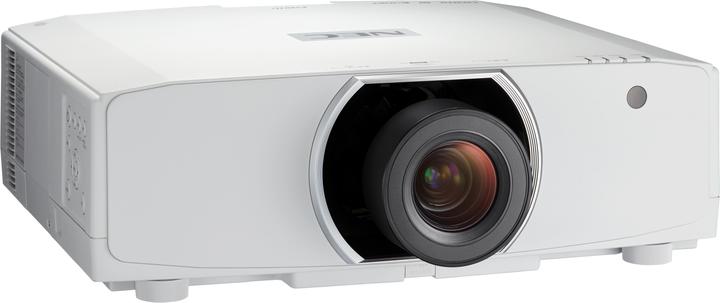

NEC PA653U, without lens

WUXGA, 6500 lm, 1.46 - 3.02:1
Ratings
BrandMore from NEC
Currently out of stock
Free shipping starting at 50.–

Product details

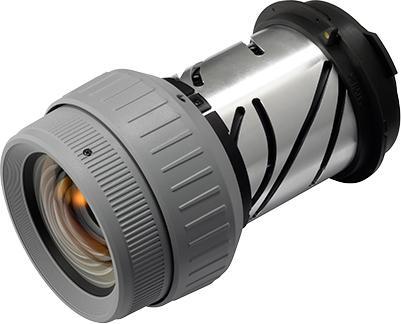

The PA653U from NEC is a 6500-lumen widescreen model designed for professional installations, targeting users in higher education and the corporate sector. With its numerous digital inputs, it can connect to any computer or HD device. Enjoy design and installation flexibility with a complete range of optional motorized lenses (lens shift, focus, and zoom), tilt-safe and portrait installation options, as well as integrated edge blending and stacking. The HDBaseT input and separate HDBaseT output provide single connections for uncompressed full HD digital video, audio, Ethernet power, and various control signals.

  • 4K ready - HDR10, BT.2020 signal format applicable for use with Ultra HD Blu-ray and 4K TV broadcasts.
  • Basic control of competitive products reduces the need for reprogramming the control system.
  • TileMatrix allows for a 4Kx2K resolution using 4 projectors via the HDBaseT output.
  • Using the optional MultiPresenter stick enables easy connection for up to 12 devices simultaneously (Windows, Mac, Android, iOS). Screen mirroring for Android and Windows. Simple annotation software.
  • High-performance video processing/scaling produces lifelike images.
  • Integrated software applications such as DisplayNote, Crestron Roomview, AMX Beacon, Extron XTP, and PJ Link enable full interactivity and control.
  • The brightness of 6500 lumens enhances images for most applications.

Key specifications

Projector type
Professional projector
Projector technology
LCD
Equipment + Functions
3D, Automatic switch-off, Crestron, Dicom, HDBaseT, HDCP, Network control, Timer Function
Image resolution
1920 x 1200 pixels
Contrast ratio
8000:1
Max. Projection area (inch)
500"
Throw ratio
1.46 - 3.02:1

General information

Item number
10144401
Manufacturer
NEC
Category
Projector
Manufacturer no.
40001119
Release date
9.1.2018

Colour

Colour
White

Projector properties

Projector type
Professional projector
Projector technology
LCD
Installation place
Ceiling
Focus type
Manual focus
Equipment + Functions
3D, Automatic switch-off, Crestron, Dicom, HDBaseT, HDCP, Network control, Timer Function

Projector display

Aspect ratio
16:10
Display resolution
WUXGA
Image resolution
1920 x 1200 pixels
Dynamic range
HDR10
Contrast ratio
8000:1
Brightness (ANSI)
6500 lm
Throw ratio type
Variable
Max. Projection area (inch)
500"
Horizontal scanning area
15 - 153 kHz
Vertical scanning range
48 - 120 Hz

Image positioning

Throw ratio
1.46 - 3.02:1
Min. throw ratio
1.46:1
Max. throw ratio
3.02:1
Image adjustment
Keystone correction, Lens Shift
Zoom type
Manual
Projection distance
0.74 - 20.9 m
Min. projection distance (metres)
0.74 m
Max. projection distance (metres)
20.90 m

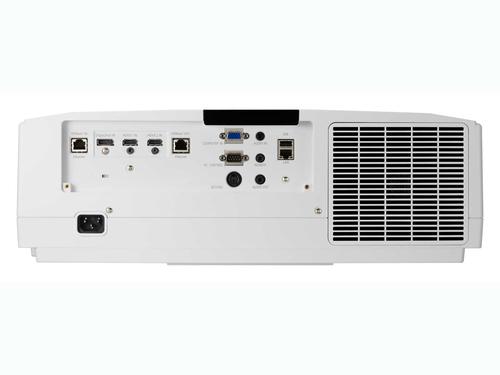

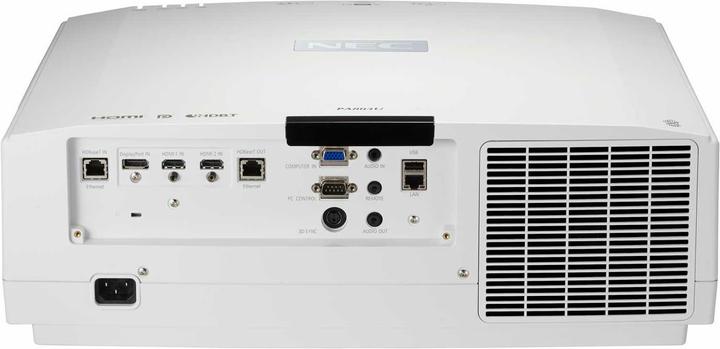

Connections

Video connections
DisplayPort (1x), HDMI (2x), S-Video (1x), VGA (1x)
Audio Connections
Jack 3.5mm (1x)
Data ports
RS-232 (1x)
Network connections
RJ45 (1x)

Noise emission

Max. noise level
39 dB
Noise level in power saving mode
33 dB

Lamp properties

Bulb type
UHP
Lamp technology
UHP
Lamp service life
4000 h
Life energy-saving mode
5000 h

Power supply

Power supply
Electrical connection
Conventional energy consumption
506 W
Power consumption (standby)
0.70 W

Scope of delivery

Scope of delivery
Lenses optional, Remote control

Product dimensions

Length
411 mm
Width
499 mm
Height
163.70 mm
Weight
10.20 kg
