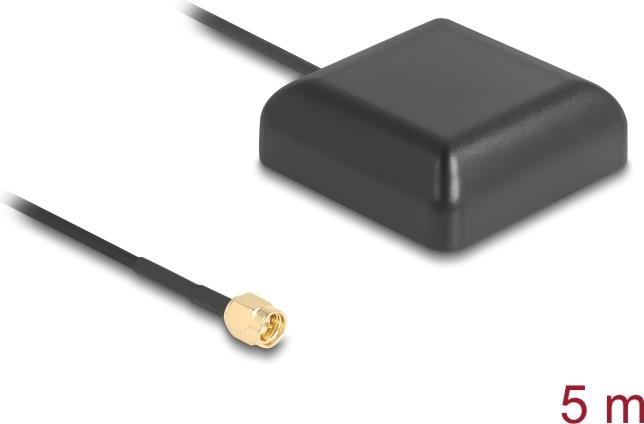

Navilock 60650 - NL-203AA GNSS GALILEO GPS High Gain Antenna with SMA connector 5 m outdoor

Ratings
BrandMore from Navilock
Delivered between Fri, 17.4. and Wed, 6.5.
More than 10 pieces in stock at supplier
Free shipping starting at 50.–

Product details

This GNSS antenna from Navilock can be used with an existing GNSS receiver that has an SMA connector. You can improve reception by positioning the antenna with a clear view of the sky, such as on the vehicle roof or the parcel shelf. The antenna is waterproof and can therefore also be temporarily used on the exterior of the vehicle.

Technical Specifications:

  • Connection: 1 x SMA plug
  • Connector finish: Gold-plated brass
  • External active additional antenna for GNSS receivers
  • Internal patch antenna:
  • Antenna gain: 5 dBic
  • Bandwidth: > 20 MHz
  • VSWR: 2.0
  • Polarization: RHCP
  • Dimensions (LxWxH): approx. 25 x 25 x 4 mm
  • Base plate dimensions (LxW): approx. 40 x 40 mm (PCB)
  • LNA GNSS:
  • Gain: 30 dB
  • VSWR: 1.5
  • Input voltage: 3.0 - 5.0 V
  • Noise figure: 1.5 @ 25 °C +/- 10 °C
  • Frequency range: 1575.42 MHz +/- 1.02 MHz
  • Impedance: 50 Ohm
  • Operating temperature: -40 °C to 80 °C
  • Protection class: IPX6
  • Magnetic bottom
  • Current consumption: approx. 10 mA @ 5.0 V
  • Cable type: RG-174
  • Cable attenuation: 5.70 dB
  • Cable length: approx. 5 m
  • Dimensions (LxWxH): approx. 50.6 x 50.6 x 15.1 mm

System Requirements:

  • Device with a free SMA socket

Package Contents:

  • GNSS antenna

Packaging:

  • Resealable bag.

Key specifications

GPS accessory type
Antenna

General information

Item number
47749641
Manufacturer
Navilock
Category
GPS navigation accessories
Manufacturer no.
60650
Release date
12.8.2024

GPS accessory properties

GPS accessory type
Antenna

Battery properties

Voltage
3 V

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
11.93 kg
Climate contribution
CHF 0.28

Product dimensions

Length
50.60 mm
Height
15.10 mm

Package dimensions

Length
15.20 cm
Width
10.10 cm
Height
3.90 cm
Weight
104 g
